AP-1 1 TON ARBOR PRESS

Presses

Every JET arbor press is made of a heavy ductile iron casting that offers incredible strength and rigidity to the overall framework. The base, ram housing, framework and 4 position bottom plate are precision machined for unquestioned accuracy.

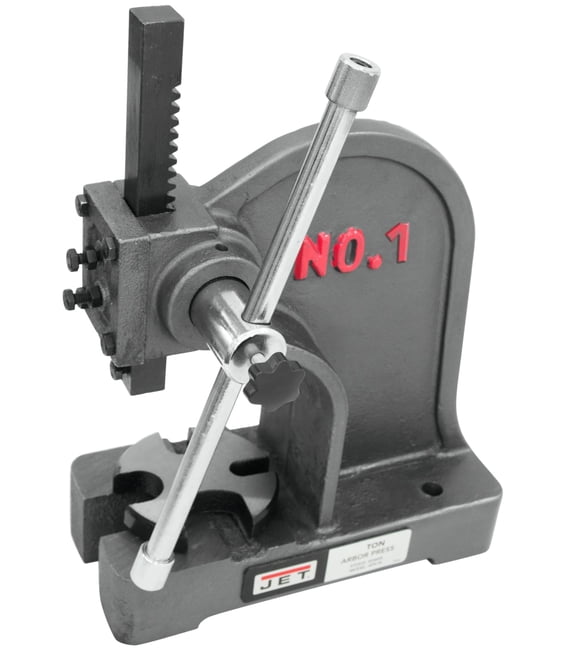

AP1-M, 1-Ton Arbor Press

Features & Benefits

For all production and assembly applications
Precision cut steel rams and pinions for accurate operation
Tables and slotted table-plates are flat and parallel to provide accurate support

SAP EAN Number Code (UPC)	662755692055
Model Number	AP1-M
SAP Base Unit of Measure	EA
SAP Commodity Code	8479.89.9499
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	5
SAP Unit of Dimension	IN
SAP Height	27
SAP Unit of Dimension	IN
SAP Width	10.75
SAP Unit of Dimension	IN
SAP Gross Weight	26.5
SAP Weight Unit	LBS
SAP Net weight	26.5
SAP Weight Unit	LBS
SAP Transportation Group	Parcel
Anvil Diameter (In.)	3-1/2
Approx. Pressure (Tons)	1
Arbor Press Height (In.)	12
Capacity Over Table (In.)	5
Diameter of Work (In.)	8
End User Sellable	No
Item Display Order	5.0000
Max. Work Height (In.)	5-1/8
Prop 65	Cancer and Reproductive Harm
Ram Bore (In.)	1/2
Size of Ram (In.)	1 x 9-1/8
Travel of Ram (In.)	5-4/5
Weight (Lbs.)	27.0000
Weight (Lbs.) (Unit)	Pound

Part #: 333610

Price: $129.00

Quantity:
