AP-3 3 TON ARBOR PRESS(TEXT)

Presses

Every JET arbor press is made of a heavy ductile iron casting that offers incredible strength and rigidity to the overall framework. The base, ram housing, framework and 4 position bottom plate are precision machined for unquestioned accuracy.

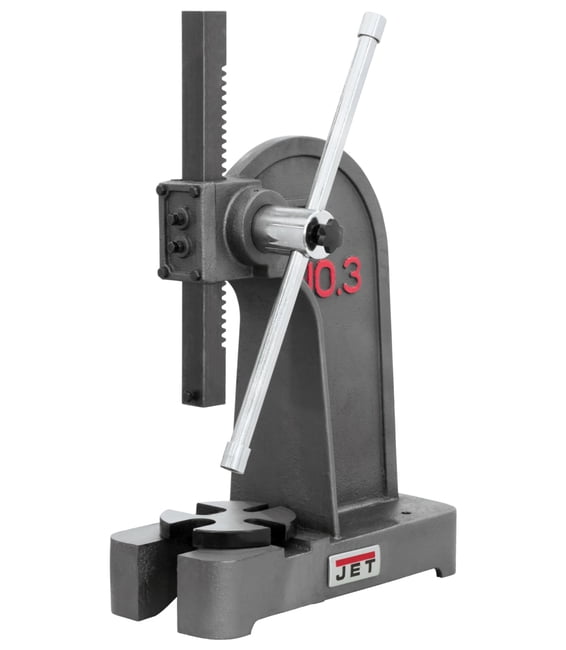

AP3-M, 3-Ton Arbor Press

Features & Benefits

For all production and assembly applications
Precision cut steel rams and pinions for accurate operation
Tables and slotted table-plates are flat and parallel to provide accurate support

SAP EAN Number Code (UPC)	662755692031
Model Number	AP3-M
SAP Base Unit of Measure	EA
SAP Commodity Code	8479.89.9499
SAP Country of Origin	China
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	20
SAP Unit of Dimension	IN
SAP Height	12
SAP Unit of Dimension	IN
SAP Width	24
SAP Unit of Dimension	IN
SAP Gross Weight	97
SAP Weight Unit	LBS
SAP Net weight	96
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Anvil Diameter (In.)	6-11/16
Approx. Pressure (Tons)	3
Arbor Press Height (In.)	18-1/8
Capacity Over Table (In.)	11-1/2
Diameter of Work (In.)	11-3/8
End User Sellable	No
Item Display Order	7.0000
Prop 65	Cancer and Reproductive Harm
Ram Bore (In.)	1/2
Travel of Ram (In.)	12-3/5
Weight (Lbs.)	108.0000
Weight (Lbs.) (Unit)	Pound

Part #: 333630

Price: $449.00

Quantity:
