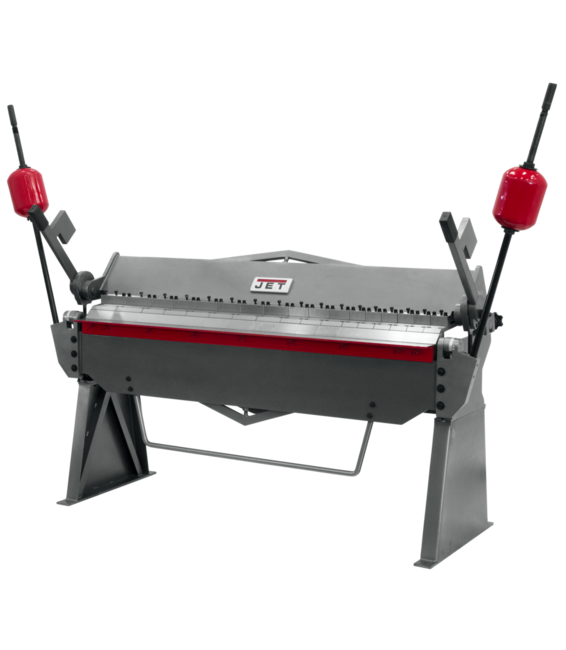

BP-1272 12GA x72" FLOOR BOX & PAN BRAKE
BP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKE
BP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKE
BP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKEBP-1272 12GA x72" FLOOR BOX & PAN BRAKE

The JET 72 Box and Pan brake is designed for durable use and precise results. Innovative ergonomic features promote operator comfort and help prevent injury and fatigue. Welded steel plate body sections and heavy truss rods and braces contribute to strength.

BP-1272 12 GA Floor Box and Pan Brake

Features & Benefits

  • All body sections are welded steel plate
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Both the bed and apron are bored in line to assure the utmost accuracy
  • Counter weights can be moved up or down to provide leverage
  • Repeat bends are easy with a quick turn of the stop collar on the stop rod
  • Soft grips on top of counter weight bar to prevent damaging the operator's hands
  • Soft touch handle grips
  • With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
SAP EAN Number Code (UPC)731325513370
Model NumberBP-1272
SAP Base Unit of MeasureEA
SAP Commodity Code8466.94.8585
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length100
SAP Unit of DimensionIN
SAP Height41
SAP Unit of DimensionIN
SAP Width30
SAP Unit of DimensionIN
SAP Gross Weight2535
SAP Weight UnitLBS
SAP Net weight2182
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Beam Adjustment (Front to Rear) (In.)2
Bending Length Capacity (In.)72.0000
Bending Length Capacity (In.) (Unit)Inch
End User SellableNo
Finger Nose Angle (Deg.)45
Item Display Order8.0000
Maximum Box Depth (In.)4
Maximum Lift of Beam (In.)2.2
Mild Steel Capacity (Gauge)12.0000
Nose Radius (In.)1/32
Number and Width of Fingers (In.)6@3, 3@4, 6@5, 2@6
Overall Dimensions (L x W x H) (In.)100 x 30 x 41
Prop 65Cancer and Reproductive Harm
Weight (Lbs.)2535.0000
Weight (Lbs.) (Unit)Pound

Part #: 754125

Price: $8,829.00
Quantity:
