BPF-1248 FLOOR BOX & PAN BRAKE

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision

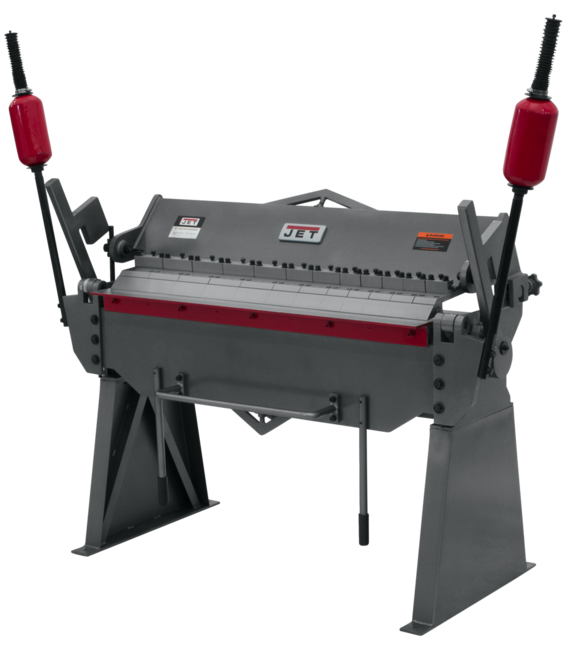

BPF-1248, 48" x 12 Gauge Floor Model Box and Pan Brake

Features & Benefits

  • 10 Gauge maximum capacity for aluminum and copper alloys
  • 12 Gauge maximum capacity for mild steel
  • 16 Gauge maximum capacity for stainless steel
  • All body sections are welded steel plate
  • All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
  • Both the bed and apron are bored in line to assure the utmost accuracy
  • Stop rod for repeat bending
  • Wide assortment of finger widths allow greater versatility in the shop
  • With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
SAP EAN Number Code (UPC)731325450101
Model NumberBPF-1248
SAP Base Unit of MeasureEA
SAP Commodity Code8462.29.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Length87
SAP Unit of DimensionIN
SAP Height70
SAP Unit of DimensionIN
SAP Width59
SAP Unit of DimensionIN
SAP Gross Weight1250
SAP Weight UnitLBS
SAP Net weight1100
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Beam Adjustment (Front to Rear) (In.)7/8
Bending Length Capacity (In.)48.0000
Bending Length Capacity (In.) (Unit)Inch
End User SellableNo
Finger Nose Angle (Deg.)45
Item Display Order2.0000
Maximum Box Depth (In.)4
Maximum Lift of Beam (In.)1-1/2
Mild Steel Capacity (Gauge)12.0000
Nose Radius (In.)1/32
Number and Width of Fingers (In.)12 (5@3in, 2@4in, 5@5in)
Overall Dimensions (L x W x H) (In.)87 x 59 x 70
Prop 65Cancer and Reproductive Harm
Style (Type)Floor Box and Pan
Weight (Lbs.)1110.0000
Weight (Lbs.) (Unit)Pound

Part #: 754110

Price: $5,349.00
