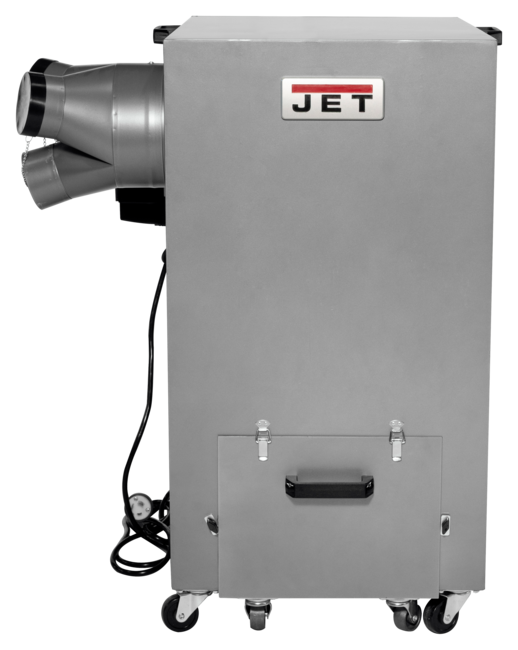

1500 CFM METAL DUST COLLECTOR

Dust Collectors

JET's new 412CFM Industrial Dust Collector is great for collecting abrasive dust from Belt & Disc finishing and grinding machines. Chips and dust collect into a metal drawer that is easy to clean. Three 3 dust chutes allows you to attached to multiple machines. The convenient casters allow for use throughout your shop. Enhance the health and safety levels in your shop with JET."

JDC-510 957CFM Industrial Dust Collector 3HP, 220V, Single Phase

Features & Benefits

CSA/US: Following strict guidelines and electrical requirements, this JET Industrial Dust Collector is CSA/US certified
Simple and easy to clean-out chip & dust drawer
Easy to change exhaust filter
All steel construction
Non-sparking aluminum housing and fan blade
Portable on 4 casters and 2 handles for ease of movement
Quiet, effective dust collection method

SAP EAN Number Code (UPC)	731325806816
Model Number	JDC-510
SAP Base Unit of Measure	EA
SAP Commodity Code	8421.39.8005
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Length	30.625
SAP Unit of Dimension	IN
SAP Height	29
SAP Unit of Dimension	IN
SAP Width	20.875
SAP Unit of Dimension	IN
SAP Gross Weight	320
SAP Weight Unit	LBS
SAP Net weight	290
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Air Flow (CFM) (High)	957 @ 8" Inlet 412 @ 3" Inlet
Filter Efficiency	85.4% @ 3micron to 10micron
Dust Port Size (In.)	3
Easy2 URL	https://content.jettools.com/assets/3d/JET_800414900_360.html
Electrics	3HP, 220V, 1Ph
Filter Size (W x L x D) (In.)	19-3/8 x 25 x 1-25/32
Filter Type	Anti-Spark / Fireproof
Gross Weight (Lbs)	251.0000
Gross Weight (Lbs) (Unit)	Pound
Item Display Order	5.0000
Maximum CFM	490.0000
Motor Amps	15
Motor (HP)	3HP, 220V, 1Ph
Motor Phase	1
Motor Voltage (V.)	220
Net Weight (Lbs.)	212.0000
Net Weight (Lbs.) (Unit)	Pound
Overall Dimensions (L x W x H) (In.)	30-5/8 x 20-7/8 x 29
Prop 65	Cancer and Reproductive Harm
Sound Rating (Db.)	75
Style (Type)	Dust Collector
Weight (Lbs.)	212.0000
Weight (Lbs.) (Unit)	Pound
Number of Ports	3
Port Size (in.) (with Adaptor)	8/3

Part #: 414900

Price: $2,989.00
