IBDG-248 BNCH 2X48 BELT WI/ 9 DISC

Belt Sanders and Grinders

<< Back

IBDG-248 BNCH 2X48 BELT WI/ 9 DISC
IBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISC
IBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISC
IBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISC
IBDG-248 BNCH 2X48 BELT WI/ 9 DISCIBDG-248 BNCH 2X48 BELT WI/ 9 DISC

The IBDG-248 Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. CSA/CUS Certified.

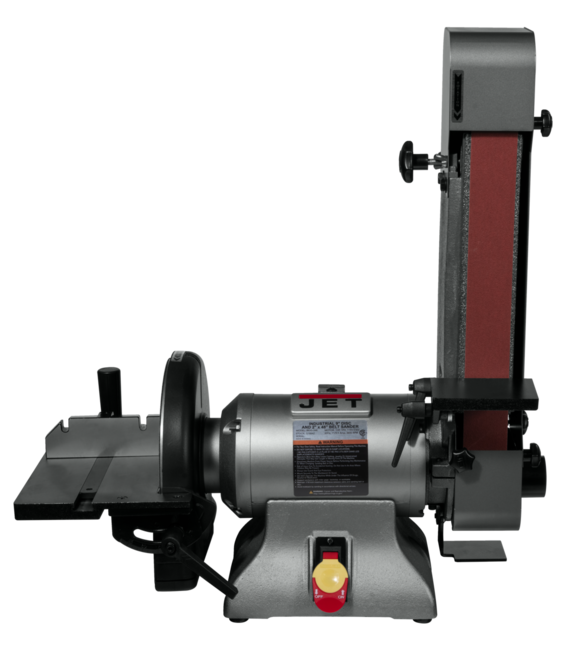

IBDG-248 Combination Industrial 2" x 48" Belt and 9" Disc Grinder

Features & Benefits

  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Safety switch with removable key
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
SAP EAN Number Code (UPC)731325806861
Model NumberIBDG-248
SAP Base Unit of MeasureEA
SAP Commodity Code3926.90.5500
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length30
SAP Unit of DimensionIN
SAP Height17
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight95
SAP Weight UnitLBS
SAP Net weight77
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products577510,577511,577512,577513,577514,577515,577516,577517,577518,577519,577520,577521,577522,578172,578173
30 Point inspectionNo value
Amperage Draw @ 115V 1Ph11
Belt Grit80.0000
Belt Size (W x L) (In.)2 x 48
Belt Speed (SFPM)4712
Disc Diameter (In.)9.0000
Disc Speed (RPM)3600
Dust Port Size (In.)2
Easy2 URLhttps://content.jettools.com/assets/3d/JET_578842_360.html
End User SellableNo
Gross Weight (Lbs)97.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order22.0000
Motor (HP)1
Motor Voltage (V.)115
Net Weight (Lbs.)74.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) (English United States)23-1/2 x 26-3/4 x 12-1/4
Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) (English United States)23-1/2 x15 x 25-7/8
Prop 65Cancer
Shaft Diameter (In.)11

Part #: 578842

Price: $699.00
Quantity:
