IBDG-248VS VS BNCH 2X48 BELT X 9 DISC

Belt Sanders and Grinders

<< Back

IBDG-248VS VS BNCH 2X48 BELT X 9 DISC
IBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISC
IBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISC
IBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISC
IBDG-248VS VS BNCH 2X48 BELT X 9 DISCIBDG-248VS VS BNCH 2X48 BELT X 9 DISC

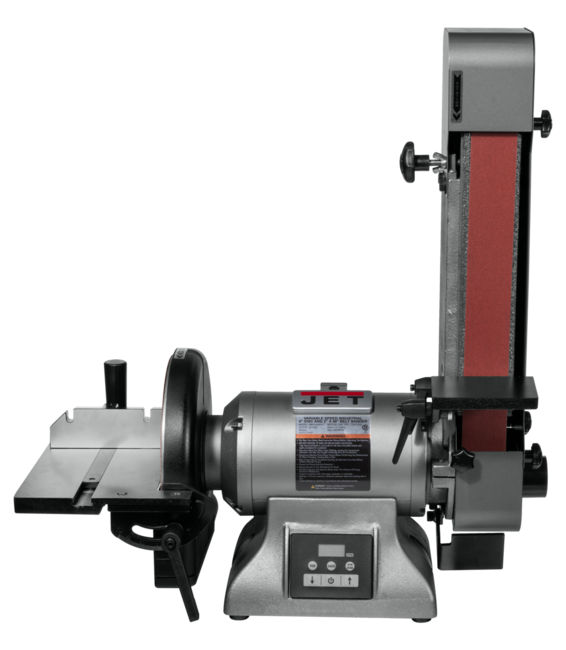

The Variable Speed IBDG-248VS Combination 2" x 48" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-248VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds. CSA/CUS Certified.

IBDG-248VS Variable Speed Industrial 2" x 48" Belt and 9" Disc Grinder

Features & Benefits

  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
  • VS models include Break resistor which allows for rapid stopping of belt and disc movement.
SAP EAN Number Code (UPC)731325806854
Model NumberIBDG-248VS
SAP Base Unit of MeasureEA
SAP Commodity Code3926.90.5500
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length30
SAP Unit of DimensionIN
SAP Height17
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight96
SAP Weight UnitLBS
SAP Net weight78
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products577510,577511,577512,577514,577515,577516,577517,577518,577519,577520,577521,577522,578172,578173
Amperage Draw @ 115V 1Ph7
Belt Grit80.0000
Belt Size (W x L) (In.)2 x 48
Belt Speed (SFPM)1178 - 4712
Disc Diameter (In.)9.0000
Disc Speed (RPM)900 - 3600
Dust Port Size (In.)2
Easy2 URLhttp://content.jettools.com/assets/3D/JET_577842_360.html
End User SellableNo
Gross Weight (Lbs)97.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order20.0000
Motor (HP)1
Net Weight (Lbs.)74.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) (English United States)23-1/2 x 26-3/4 x 12-1/4
Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) (English United States)23-1/2 x15 x 25-7/8
Prop 65None
Style (Type)7

Part #: 577842

Price: $899.00
Quantity:
