IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC

Belt Sanders and Grinders

<< Back

IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC
IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC
IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC
IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC
IBDG-436VS VS BNCH 4X36 BELT W/ 9 DISCIBDG-436VS VS BNCH 4X36 BELT W/ 9 DISC

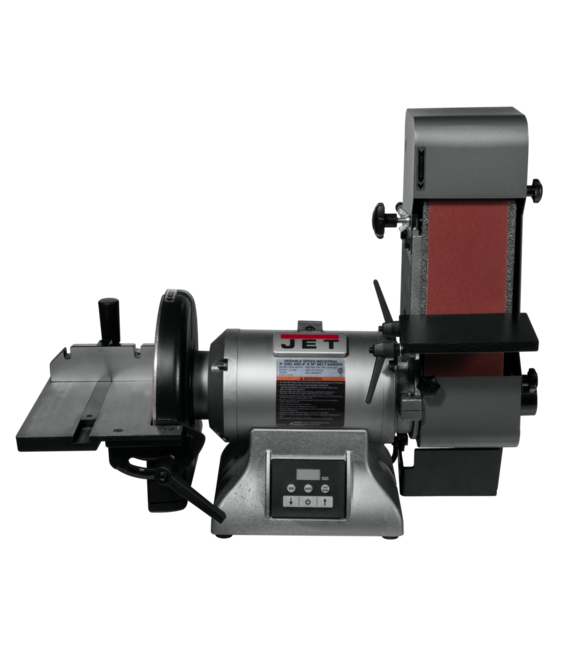

The Variable Speed IBDG-436VS Combination 4" x 36" Belt and 9" Disc grinder is engineered with industrial strength construction, sealed bearings, and a powerful enclosed one horsepower motor meant for heavy usage. The Variable Speed IBDG-436VS includes a digital readout that allows operators to accurately monitor the RPMS and SFPM. The electric motor brake quickly stops the wheels from 3,600 RPMs to 0 in less than 20 seconds. CSA/CUS Certified.

IBDG-436VS Variable Speed Industrial 4" x 36" Belt and 9" Disc Grinder

Features & Benefits

  • 9" aluminum disc reduces heat buildup and prolongs abrasive life
  • Cast iron work rests with tool-less adjustments
  • Contact wheel grinding with toolless access
  • Easy-to-use belt tracking.
  • Full guarding of all non-work contact points
  • Heavy Cast Iron Bases reduce vibration.
  • Solid cast iron platen offers rigid grinding surface
  • Two dust collection ports minimize debris build up.
  • VS models include Break resistor which allows for rapid stopping of belt and disc movement.
SAP EAN Number Code (UPC)731325806878
Model NumberIBDG-436VS
SAP Base Unit of MeasureEA
SAP Commodity Code3926.90.5500
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length31
SAP Unit of DimensionIN
SAP Height17
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight93
SAP Weight UnitLBS
SAP Net weight77
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products577528,577529,577530,577531,577532,577533,577534,577535,577536,577537,577538,577539,577540,578172,578173
30 Point inspectionNo value
Belt Grit80.0000
Belt Size (W x L) (In.)4 x 36
Disc Diameter (In.)9.0000
Dust Port Size (In.)2
Easy2 URLhttp://content.jettools.com/assets/3D/JET_577634_360.html
End User SellableNo
Gross Weight (Lbs)92.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order21.0000
Motor (HP)1
Net Weight (Lbs.)73.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.) (sanding bracket is parallel) (English United States)25-3/4 x 21-3/4 x 11-3/4
Overall Dimensions (L x W x H) (In.) (sanding bracket is vertical) (English United States)25-3/8 x 21-3/4 x 20-3/4
Prop 65Cancer
Shaft Diameter (In.)7

Part #: 577634

Price: $1,019.00
