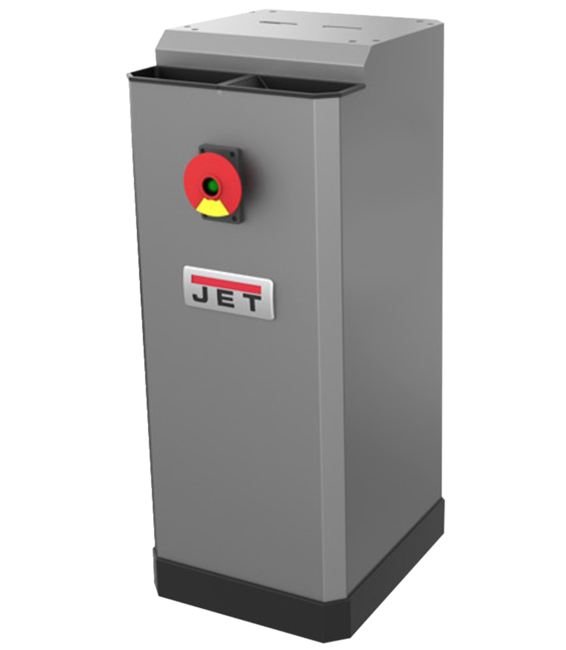

JDCS-505 MW DUST COLLECTOR STAND
JDCS-505 MW DUST COLLECTOR STANDJDCS-505 MW DUST COLLECTOR STANDJDCS-505 MW DUST COLLECTOR STAND
JDCS-505 MW DUST COLLECTOR STAND

JETS new Metal Dust Collection Stand is great for collecting abrasive dust from most brands Bench Grinders and Bench Top Belt & Disc Sanders.

JDCS-505, Metal Dust Collector Stand 115V

Features & Benefits

  • Any brand bench top belt, disc or combination machine can be mounted using the optional Universal Adapter Plate (414830)
  • Chips and dust collect into a metal drawer that is easy to empty, and the high temperature filters are replaceable
  • CSA/CUS Certified
  • Four Adjustable Leveling Pads
  • Heavy-Duty 16 gauge steel construction
  • Large On/off switch with safety key
  • Non-sparking aluminum fan blade and housing eliminates the risk of fire during the collection of abrasive dust and chips
  • Turbo fan design provides a maximum of 472 CFM of air movement for effective metal dust collection
  • Two removable water pots gives you the features of a pedestal stand along with all the benefits of a dust collector
  • Universal Metalworking Dust Collection Stand, fits ANY BRAND bench grinder and bench top belt & disc sanders
SAP EAN Number Code (UPC)731325450248
Model NumberJDCS-505
SAP Base Unit of MeasureEA
SAP Commodity Code8421.99.0080
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length15.5
SAP Unit of DimensionIN
SAP Height32.25
SAP Unit of DimensionIN
SAP Width16
SAP Unit of DimensionIN
SAP Gross Weight86
SAP Weight UnitLBS
SAP Net weight86
SAP Weight UnitLBS
SAP Transportation GroupParcel
Accessories Products414812,414813,414815,414820,414825,414830,414840
Easy2 URLhttp://content.jettools.com/assets/3d/414800_det7.html
End User SellableNo
Item Display Order2.0000
Maximum CFM472.0000
Maximum Hose Velocity (SFPM)3465.0000
Motor (HP)1/2 HP, 115V, 1Ph (20A)
Prop 65Cancer and Reproductive Harm
Sound Rating (Db.)75 db @ 10 Ft
Style (Type)Stand
Weight (Lbs.)110.0000
Weight (Lbs.) (Unit)Pound

Part #: 414800

Price: $1,509.00
