INDUSTRIAL AFS 1700 CFM

Air Filtration Systems

<< Back

INDUSTRIAL AFS 1700 CFM
INDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFM
INDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFM
INDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFMINDUSTRIAL AFS 1700 CFM

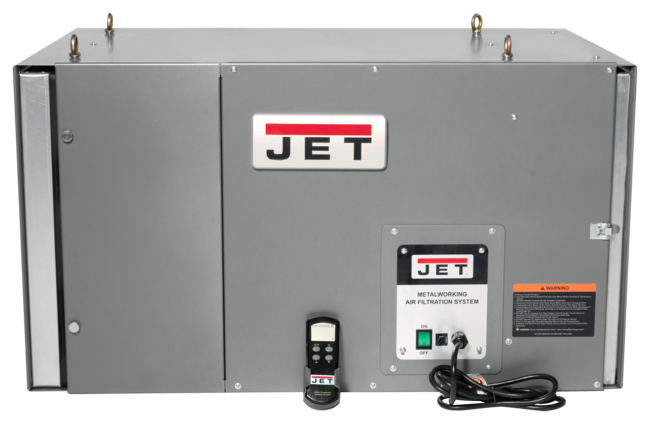

IAFS-1700 1700 CFM Industrial Air Filtration System 1/3HP, 115V, Single Phase

JET Air Filtration is all about one thing; Workshop Safety. Metalworking specific air filters attract oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist. JET's units keep your shop cleaner and safer and allow you to spend more time on the job, and give you peace of mind while you are working in your shop. The optional charcoal filters help to eliminate odors as well.

Features & Benefits

  • Constructed of metal for years of use
  • Helps to extended the service life of the air conditioning equipment in the shop
  • Fully enclosed ball bearing motor with overload protection for long, dependable service
  • Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air
  • Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern
  • Filters dust, smoke and oil mist in a closed or air conditioned workshop
  • Adjustable exhaust directs the air where you want it for optimal circulation
UPC7.31326E+11
SAP Material GroupMW414
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberIAFS-1700
SAP OwnerJMW
SAP Division3
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height20.28
SAP Length36.69
SAP Volume10.334
SAP Width24
Prop 65Cancer and Reproductive Harm
Air Flow (CFM) (High)1372
Cycles per hour31.91
Electrics (HP/Voltage/PH)1/3HP, 115V, 1Ph
Gross Weight (Lbs)176
Inner Filter Efficiency (MERV)12
Inner Filter Expanded Area (ft2)37-11/16
Inner Filter MaterialREEMAY®WHT (Polyester)
Inner Filter Overall Size (L x W x Thickness/in.)23-15/32 x 19-3/8 x 1-3/4
Motor (amps)7.7
Motor Voltage (V.)1/3HP, 115V, 1Ph
Net Weight (Lbs.)136
Noise Level @ 3ft (Decibel dB) High/Medium/Low74/62/59
Outer Filter Efficiency (MERV)8
Outer Filter Expanded Area (ft2)3.12
Outer Filter MaterialResin Fiber
Outer Filter Overall Size (L x W x Thickness/in.)23-15/32 x 19-3/8 x 1-3/4
Overall Dimensions (L x W x H) (In.)36-11/16 x 24 x 20-9/32
Speed ControlRF Remote Control
Speeds (CFM - Filtered Air)1100/940/640
Speeds (CFM) High/Medium/Low800/1200/1700
Timer Settings (hrs)9-Jan
Total Pressure (in of mercury)1.96
Total Pressure Efficiency (η ,t %) (Medium Speed)0.2

Part #: 415100

Price: $1,098.00
