INDUSTRIAL AFS 2400 CFM

Air Filtration Systems

<< Back

INDUSTRIAL AFS 2400 CFM
INDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFM
INDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFM
INDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFMINDUSTRIAL AFS 2400 CFM

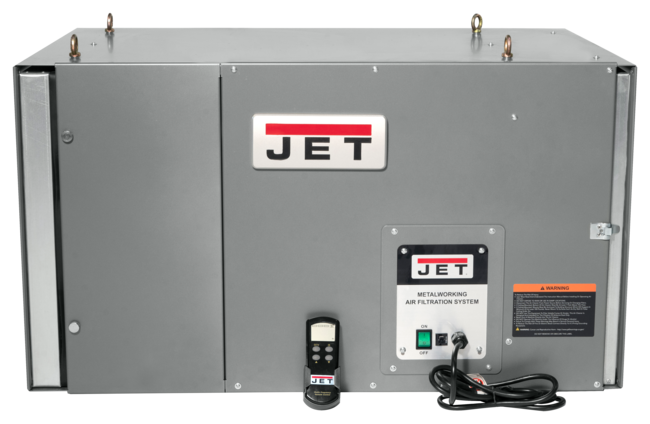

IAFS-2400 2400 CFM Industrial Air Filtration System 3/4HP, 115V, Single Phase

JET Air Filtration is all about one thing; Workshop Safety. Metalworking specific air filters attract oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist. JET's units keep your shop cleaner and safer and allow you to spend more time on the job, and give you peace of mind while you are working in your shop. The optional charcoal filters help to eliminate odors as well.

Features & Benefits

  • Constructed of metal for years of use
  • Helps to extended the service life of the air conditioning equipment in the shop
  • Fully enclosed ball bearing motor with overload protection for long, dependable service
  • Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air
  • Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern
  • Filters dust, smoke and oil mist in a closed or air conditioned workshop
  • Adjustable exhaust directs the air where you want it for optimal circulation
UPC 7.31326E+11
SAP Material Group MW414
SAP Material Type ZFIN
SAP Warranty 2 Year
Model Number IAFS-2400
SAP Owner JMW
SAP Division 3
SAP Country of Origin TW
SAP Product Category MW
SAP Rounding Profile NA
SAP Height 20.28
SAP Length 36.69
SAP Volume 10
SAP Width 24
Prop 65 Cancer and Reproductive Harm
Air Flow (CFM) (High) 1400
Cycles per hour 26
Electrics (HP/Voltage/PH) 3/4HP, 115V, 1Ph
Gross Weight (Lbs) 150
Inner Filter Efficiency (MERV) 12
Inner Filter Expanded Area (ft2) 37-11/16
Inner Filter Material REEMAY®WHT (Polyester)
Motor (amps) 8.5
Motor Voltage (V.) 3/4HP, 115V, 1Ph
Net Weight (Lbs.) 187
Noise Level @ 3ft (Decibel dB) High/Medium/Low 71/69/66
Outer Filter Efficiency (MERV) 8
Outer Filter Expanded Area (ft2) 3.12
Outer Filter Material Resin Fiber
Outer Filter Overall Size (L x W x Thickness/in.) 23-15/32 x 19-3/8 x 1-3/4
Overall Dimensions (L x W x H) (In.) 36-11/16 x 24 x 20-9/32
Speed Control RF Remote Control
Speeds (CFM - Filtered Air) 1400/1300/100
Speeds (CFM) High/Medium/Low 2097/1524/1168
Timer Settings (hrs) 9-Jan
Total Pressure (in of mercury) 3.34
Total Pressure Efficiency (η ,t %) (Medium Speed) 0.43

Part #: 415125
