INDUSTRIAL AFS 3000 CFM

Air Filtration Systems

<< Back

INDUSTRIAL AFS 3000 CFM
INDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFM
INDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFM
INDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFMINDUSTRIAL AFS 3000 CFM

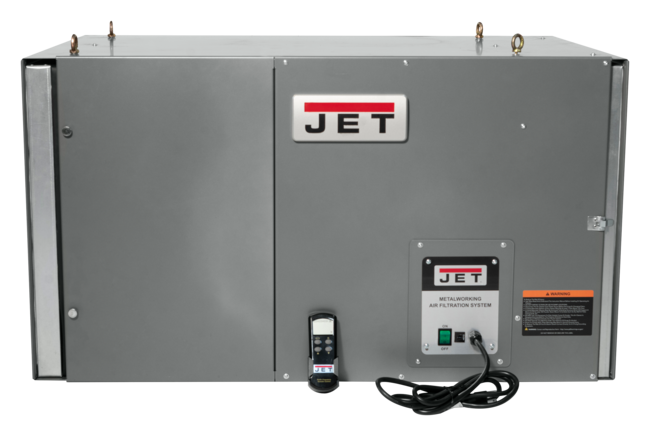

IAFS-2400 3000 CFM Industrial Air Filtration System 3/4HP, 115V, Single Phase

JET Air Filtration is all about one thing; Workshop Safety. Metalworking specific air filters attract oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist. JET's units keep your shop cleaner and safer and allow you to spend more time on the job, and give you peace of mind while you are working in your shop. The optional charcoal filters help to eliminate odors as well.

Features & Benefits

  • Constructed of metal for years of use
  • Helps to extended the service life of the air conditioning equipment in the shop
  • Fully enclosed ball bearing motor with overload protection for long, dependable service
  • Pleated fiber air filter is 99% effective with filtering fumes, oil mist, and water vapor based on 8 to 10 micron size particles in the air
  • Two-Filter system with Air Diffuser disperses outgoing air into a broader pattern
  • Filters dust, smoke and oil mist in a closed or air conditioned workshop
  • Metalworking-specific outer filter that attracts more oil mist, smoke and dust generated during the metal processing, which could effect the health of the machinist, especially in closed areas of the workshop
UPC7.31326E+11
SAP Material GroupMW414
SAP Material TypeZFIN
SAP Warranty2 Year
Model NumberIAFS-3000
SAP OwnerJMW
SAP Division3
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height23.375
SAP Length41.81
SAP Volume15.28
SAP Width27.75
Prop 65Cancer and Reproductive Harm
Air Flow (CFM) (High)3367
Cycles per hour45
Electrics (HP/Voltage/PH)1HP, 230V, 1Ph
Gross Weight (Lbs)244
Inner Filter Efficiency (MERV)12
Inner Filter Expanded Area (ft2)48-3/4
Inner Filter MaterialResin Fiber
Inner Filter Overall Size (L x W x Thickness/in.)27-5/32 x 22-19/32 x 1-3/4
Motor (amps)9
Motor Voltage (V.)1HP, 230V, 1Ph
Net Weight (Lbs.)197
Noise Level @ 3ft (Decibel dB) High/Medium/Low75/73/69
Outer Filter Efficiency (MERV)8
Outer Filter Expanded Area (ft2)4.2
Outer Filter MaterialREEMAY®WHT (Polyester)
Outer Filter Overall Size (L x W x Thickness/in.)27-5/32 x 22-19/32 x 1-3/4
Overall Dimensions (L x W x H) (In.)41-13/16 x 27-3/4 x 23-3/8
Speed ControlRF Remote Control
Speeds (CFM - Filtered Air)2400/1900/1600
Speeds (CFM) High/Medium/Low3367/2268/1654
Timer Settings (hrs)9/13/1964
Total Pressure (in of mercury)4.32
Total Pressure Efficiency (η ,t %) (Medium Speed)0.36

Part #: 415150

Price: $1,939.00
