JMD-15 W/NEWALL DP700 DRO INSTALLED(TEXT
JMD-15 W/NEWALL DP700 DRO INSTALLED(TEXTJMD-15 W/NEWALL DP700 DRO INSTALLED(TEXTJMD-15 W/NEWALL DP700 DRO INSTALLED(TEXT
JMD-15 W/NEWALL DP700 DRO INSTALLED(TEXTJMD-15 W/NEWALL DP700 DRO INSTALLED(TEXTJMD-15 W/NEWALL DP700 DRO INSTALLED(TEXT

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

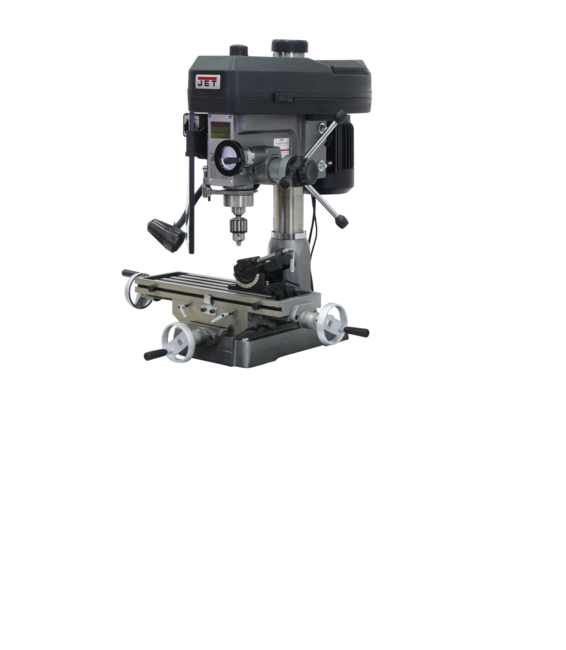

JMD-15 Mill/Drill With NEWALL DP700 DRO

Features & Benefits

  • 1/2 Drill chuck, chuck arbor
  • 360 head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read external depth gauge
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • One-piece cast iron column for added support
  • UL Listed
SAP EAN Number Code (UPC)662755514401
Model NumberJMD-15
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0021
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length36.5
SAP Unit of DimensionIN
SAP Height35.5
SAP Unit of DimensionIN
SAP Width37.5
SAP Unit of DimensionIN
SAP Gross Weight440
SAP Weight UnitLBS
SAP Net weight440
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products350045
BOM Products350017,J614DP700
Base Dimensions (In.)12/1/2 x 19-3/4
Column Diameter (In.)3-5/8
Drilling Capacity (In.)1.0000
Drilling Capacity (In.) (Unit)Inch
End User SellableNo
Item Display Order3.0000
Max Distance Spindle to Table (In.)14-1/2
Motor (HP)1 HP, 115/230V, 1Ph
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)38 x 37-1/2 x 42
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)2-7/16
Range of Spindle Speeds (RPM)110 - 2,580
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)3-1/2
Swing (In.)14-1/2
Table Longitudinal Travel (In.)14
Table Size (L x W) (In.)7-1/2 x 23
T-Slots Number and Size (In.)4 and 9/16
T-Slot Centers (In.)1-13/16
Weight (Lbs.)440.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)350

Part #: 350125

Price: $5,139.00
