JMD-18PFN W/ NEWALL DP700 DRO (TEXT)

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.

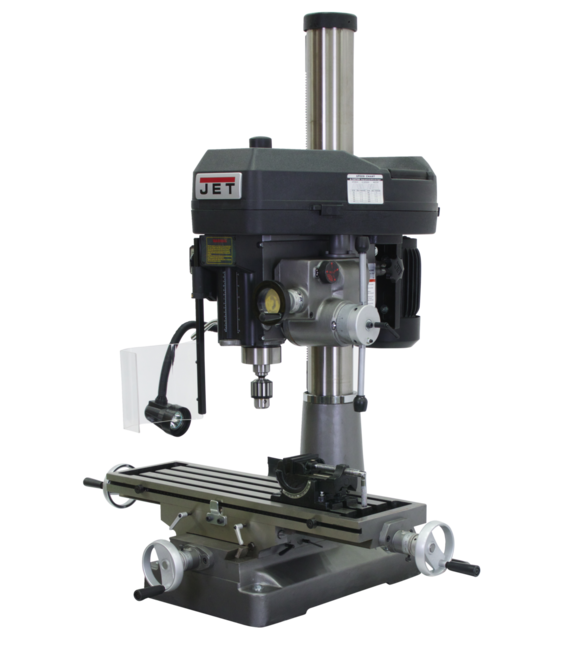

JMD-18PFN Mill/Drill With NEWALL DP700 DRO

Features & Benefits

  • 1/2 Drill chuck, chuck arbor
  • 360 head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read internal depth gauge
  • Heavy-duty power downfeed with manual feed (JMD-18PFN)
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • One-piece cast iron column for added support
  • Positive quick-stop knob and easy to read internal depth gauge
  • UL Listed
SAP EAN Number Code (UPC)662755514449
Model NumberJMD-18PFN
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length56
SAP Unit of DimensionIN
SAP Height73
SAP Unit of DimensionIN
SAP Width66
SAP Unit of DimensionIN
SAP Gross Weight944
SAP Weight UnitLBS
SAP Net weight944
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products350045
BOM Products350020,J824DP700
Base Dimensions (In.)15-3/4 x 23-3/4
Column Diameter (In.)4-1/2
End User SellableNo
Face Mill Capacity (In.)3.0000
Face Mill Capacity (In.) (Unit)Inch
Item Display Order12.0000
Max Distance Spindle to Table (In.)28
Motor (HP)2 HP,115/230V, 1 Ph, Prewired 115V
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)47 x 40 x 51
PowerfeedDownfeed
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3
Quill Down Feed Rates (IPR)0.0047, 0.007, 0.001
Range of Spindle Speeds (RPM)150 - 3,000
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel Auto (In.)4-1/4
Spindle Travel (In.)5
Swing (In.)15-7/8
Table Longitudinal Travel (In.)20-1/2
Table Size (L x W) (In.)9-1/2 x 31-3/4
T-Slots Number and Size (In.)4 and 5/8
T-Slot Centers (In.)1-13/16
Weight (Lbs.)700.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)400

Part #: 350128

Price: $7,099.00
