JMD-40GHPF  GH MILL DRILL 115/230V
JMD-40GHPF  GH MILL DRILL 115/230VJMD-40GHPF  GH MILL DRILL 115/230VJMD-40GHPF  GH MILL DRILL 115/230V
JMD-40GHPF  GH MILL DRILL 115/230VJMD-40GHPF  GH MILL DRILL 115/230VJMD-40GHPF  GH MILL DRILL 115/230V

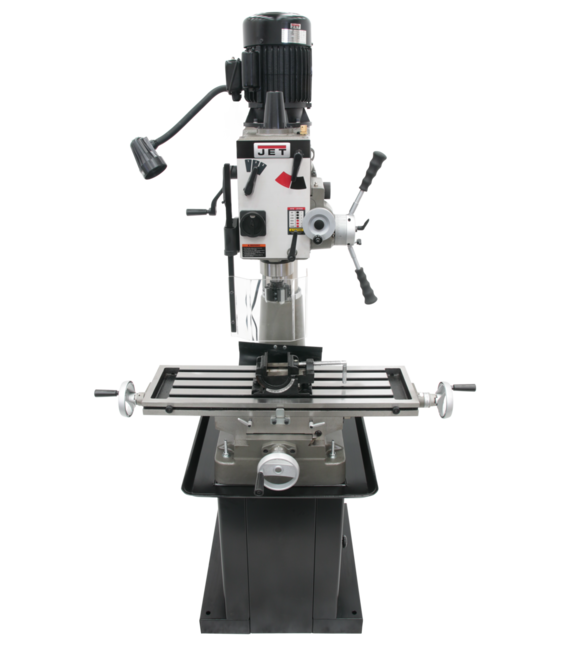

Engineered for precision drilling, the heavy-duty JMD-40GHPF Round Column Geared Head Mill Drill with power downfeed is loaded with intuitive features for maximum accuracy.

JMD-40GHPF Geared Head Mill/Drill with Power Downfeed

Features & Benefits

  • Calibrated fine down feed built in
  • CSA/CUS Certified
  • Easy to read internal depth gauge
  • Full power to the cutting tools through 6 speed geared head
  • Heavy-duty design allows for a variety of precision drilling applications
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • Milling table allows for movement
  • Power Downfeed standard
  • R8 spindle allows use of all mill tooling
  • Rapid spindle speed changes through quick-select gear shift levers
SAP EAN Number Code (UPC)731325512854
Model NumberJMD-40GHPF
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length43.7
SAP Unit of DimensionIN
SAP Height55.11
SAP Unit of DimensionIN
SAP Width32
SAP Unit of DimensionIN
SAP Gross Weight721
SAP Weight UnitLBS
SAP Net weight655
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products350045,466001,630400,650132,660012,660038,660058,660100KT,660220,A619
Base Dimensions (In.)24-1/4 x 15-15/16
Column Diameter (In.)4-1/2
End User SellableNo
Face Mill Capacity (In.)4.0000
Face Mill Capacity (In.) (Unit)Inch
Item Display Order23.0000
Max Distance Spindle to Table (In.)15-3/4
Motor (HP)1-1/2HP, 115/230V, 1Ph
Number of Spindle Speeds6
Overall Dimensions (L x W x H) (In.)28 x 39-1/4 x 42-1/2
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3
Range of Spindle Speeds (RPM)65-1550
Configurator Option TypeBase Machine
Spindle Taper (In. x TPI) (English United States, Ecommerce)R8
Spindle Travel Auto (In.)4-1/2
Spindle Travel (In.)5
Swing (In.)21
Table Longitudinal Travel (In.)20-1/2
Table Size (L x W) (In.)8-1/4 x 28-3/4
Weight (Lbs.)721.0000
Weight (Lbs.) (Unit)Pound

Part #: 351041

Price: $5,829.00
