JMD-45VSPF VS SQCLM GH MD_NMS300 2X_X-PF
JMD-45VSPF VS SQCLM GH MD_NMS300 2X_X-PFJMD-45VSPF VS SQCLM GH MD_NMS300 2X_X-PFJMD-45VSPF VS SQCLM GH MD_NMS300 2X_X-PF

Engineered to maximize production, the heavy-duty JMD-45VSPF variable speed Square Column Geared Head Mill Drill with power downfeed capability delivers the rigidity needed to perform a variety of precision drilling applications in high intensity environments. CSA/CUS Certified.

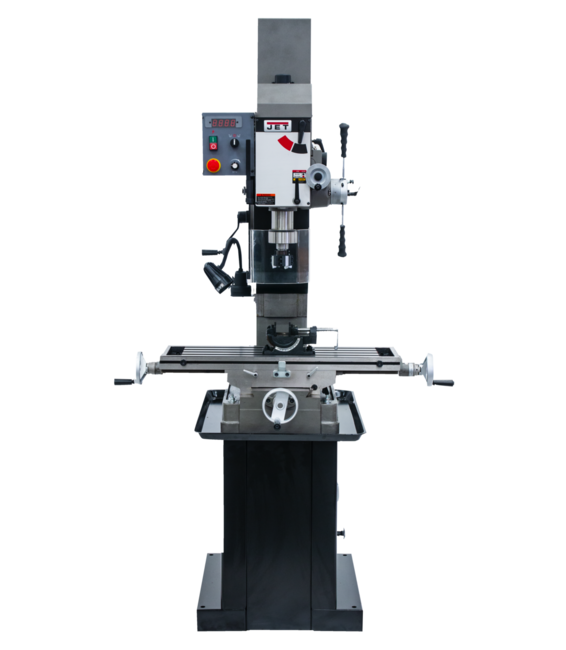

JMD-45VSPF Variable Speed Square Column Geared Head Mill/Drill with Newall DP500 2-Axis DRO & X-Axis Powerfeed

Features & Benefits

  • Easy to read internal depth gauge
  • Full power to the cutting tools through Variable Speed geared head
  • Heavy-duty design allows for a variety of precision drilling applications
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
  • Rapid spindle speed changes through quick-select gear shift levers
  • Square column with dovetail ways
SAP EAN Number Code (UPC)731325709254
Model NumberJMD-45VSPF
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length29
SAP Unit of DimensionIN
SAP Height50
SAP Unit of DimensionIN
SAP Width36
SAP Unit of DimensionIN
SAP Gross Weight820
SAP Weight UnitLBS
SAP Net weight754
SAP Weight UnitLBS
SAP Transportation GroupLTL
BOM Products350083,351050,J824DP500
Base Dimensions (In.)26-11/16 x 15-15/16
End User SellableNo
Face Mill Capacity (In.)4.0000
Face Mill Capacity (In.) (Unit)Inch
Item Display Order40.0000
Max Distance Spindle to Table (In.)18-1/8
Motor (HP)1-1/2HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)29 x 36 x 50
PowerfeedX-Axis Powerfeed
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3
Range of Spindle Speeds (RPM)50-2500
Spindle Taper (In. x TPI) (English United States, Ecommerce)R8
Spindle Travel Auto (In.)4-1/4
Spindle Travel (In.)5
Swing (In.)19-11/16
Table Longitudinal Travel (In.)20-1/2
Weight (Lbs.)827.0000
Weight (Lbs.) (Unit)Pound

Part #: 351163

Price: $11,649.00
