JTM-1 9X42 MILL W/DRO & X-PRWFD(TEXT
JTM-1 9X42 MILL W/DRO & X-PRWFD(TEXTJTM-1 9X42 MILL W/DRO & X-PRWFD(TEXTJTM-1 9X42 MILL W/DRO & X-PRWFD(TEXT

The JTM-1 Mill With Newall DP700 DRO With X-Axis Powerfeed has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.

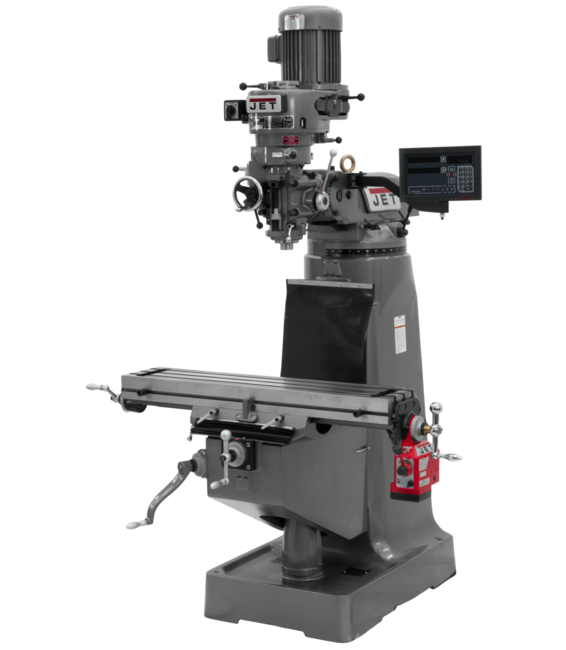

JTM-1 Mill With Newall DP700 DRO With X-Axis Powerfeed

Features & Benefits

  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Satin chrome finished dials
  • Tolerance test sheet included
SAP EAN Number Code (UPC)662755513442
Model NumberJTM-1
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0055
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length64
SAP Unit of DimensionIN
SAP Height82
SAP Unit of DimensionIN
SAP Width57
SAP Unit of DimensionIN
SAP Gross Weight2200
SAP Weight UnitLBS
SAP Net weight2200
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
BOM Products350194,690082,J1230DP700M
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
End User SellableNo
Item Display Order18.0000
Max Distance Spindle to Table (In.)17-1/2
Motor (HP)2 HP, 230V, 3Ph
Number of Axis2
Number of Spindle Speeds16
Overall Dimensions (L x W x H) (In.)57 x 64 x 82
Package NameNewall DP700 2-Axis DRO & X-Axis Powerfeed
PowerfeedX-Axis
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)80 - 5,440
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Step Pulley R8
Table Cross Travel (In.)12-1/2
Table Longitudinal Travel (In.)23-7/8
Table Longitudinal Travel With Powerfeed (In.)20-2/7
Table Size (L x W) (In.)9 x 42
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2200.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)550

Part #: 691188

Price: $15,739.00
