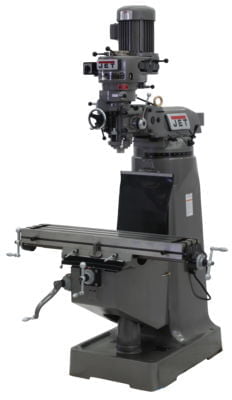

JTM-1 Mill With Newall DP500 DRO With X-Axis Powerfeeds

Name: JTM-1 Mill With Newall DP500 DRO With X-Axis Powerfeeds
Brand: Jet Tools
SKU: 692188
Price: 14229.00 USD
Availability: InStock

Vertical Mills

<< Back

Features & Benefits

Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Spindle head is internally cooled
Satin chrome finished dials
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake

UPC	731325453737
SAP Material Group	MW24
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-1
SAP Owner	JMW
SAP Division	1
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	0.000
SAP Length	0.000
SAP Volume	0.000
SAP Width	0.000
Spindle Travel (In.)	5
Table Cross Travel (In.)	12-1/2
T-Slot Centers (In.)	2-1/2
Distance Spindle to Column (Min.) (In.)	4-1/2
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Work Table Weight Capacity (Lbs.)	550
Quill Diameter (In.)	3-3/8
Collet Capacity	1/8 - 7/8
Overall Dimensions (L x W x H) (In.)	57 x 64 x 82
Number of Spindle Speeds	16
Range of Spindle Speeds (RPM)	80 - 5,440
Head Movement (Deg.)
Weight (Lbs.)	2,200
Motor (HP)	2 HP, 230V, 3Ph
Style (Type)	Step Pulley R8
Table Size (L x W) (In.)	9 x 42
Distance Spindle to Column (Max.) (In.)	19
T-Slots Number and Size (In.)	3 and 5/8
Digital Readout	Newall DP500
Powerfeed	X-Axis
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Max Distance Spindle to Table (In.)	17-1/2
Table Longitudinal Travel (In.)	23-7/8
Table Longitudinal Travel With Powerfeed (In.)	20-2/7
Spindle Taper (In. x TPI)	R-8

Part #: 692188

Price: $14,229.00

Quantity:
