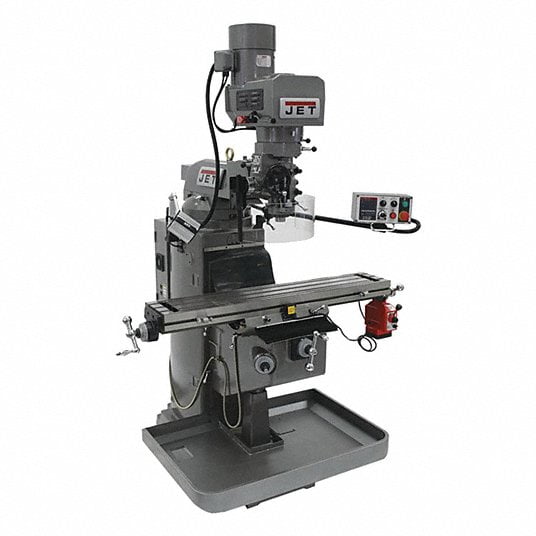

JTM-1050EVS2/230 10X50 EVS MILL

Constructed using the Certified Meehanite casting process, the JTM-1050EVS2/230, 10" x 50" Electronic Variable Speed Milling Machine provides consistent and reliable operation. The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warrant with products CSA/CUS Certified.

JTM-1050EVS2/230 Electronic Variable Speed Vertical Milling Machine 230V 3Ph

Features & Benefits

• Automatic oiler releases 3 to 6 cc/cy of lubrication every 30 minutes
• Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
• Dual locks on all moveable surfaces
• Spindle head is internally cooled extending bearing, belt and motor life
• Swing away control box houses an e-stop and puts all controls at the operators fingertips
• Swing away safety shield
• Table and ways are hardened up to 54 HRC and precision ground for greater accuracy
• The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
• The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
• The X and Y-Axis are coated with Turcite-B for reduced vibration and smooth movements
