JTM-1050EVS2/230 2X MILL PWR CNC

CNC Mills

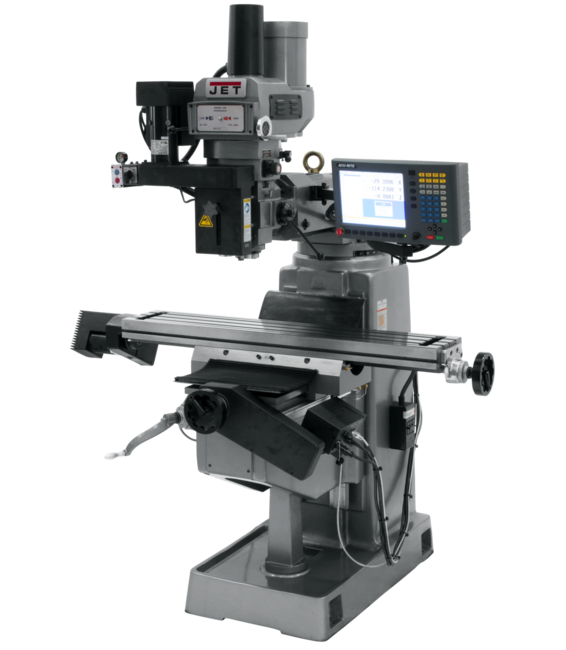

JTM-1050EVS2/230 Mill With 2-Axis Acu-Rite MilPwr G2 CNC Controller

CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS
Features of the ACU-RITE MILLPWR G2 CNC Package
Precision Ground Ball Screws eliminate backlash for precice lateral movements
Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
Powerful DC Servo motor assemblies that include mounting castings and hardware
Handwheels are included for manual operation
Features of the ACU-RITE MILLPWR G2 CONTROLLER
USB + Ethernet compatible
Simplified navigation that eliminates multiple menu screens
12.1" High resolution display (1024 x 768) with 3D graphics

UPC	731325452532
SAP Material Group	MW28
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-1050EVS2/230
SAP Owner	JMW
SAP Division	1
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	87.000
SAP Length	66.000
SAP Volume	209.344
SAP Width	63.000
Prop 65	Cancer and Reproductive Harm
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Travel of Knee (In.)	16-1/8
Head Movement (Deg.)
Motor (HP)	3 HP, 230V, 3Ph
Overall Dimensions (L x W x H) (In.)	66 x 63 x 87
Spindle Travel (In.)	5
Style (Type)	CNC
Spindle Taper (In. x TPI)	R-8
Work Table Weight Capacity (Lbs.)	840
CNC Package
Table Longitudinal Travel (In.)	35-1/3
Table Size (L x W) (In.)	10 x 50
Weight (Lbs.)	2,860
T-Slots Number and Size (In.)	3 and 5/8
Table Cross Travel (In.)	14-3/4
Number of Spindle Speeds	Variable
T-Slot Centers (In.)	2-1/2
Range of Spindle Speeds (RPM)	60 - 4,500
Travel of Ram (In.)	15-7/8
Distance Spindle to Column (Max.) (In.)	26-3/4
Distance Spindle to Column (Min.) (In.)	4-3/4
Quill Diameter (In.)	3-3/8
Number of Axis	2
Collet Capacity	1/8 - 7/8
Max Distance Spindle to Table (In.)	20-3/4
Column Width (In.)	20
Saddle Width (In.)	11-1/2
Inverter Type	Delta, B
Table Longitudinal Travel With Powerfeed (In.)	29-7/8

Part #: 690675

Price: $43,499.00
