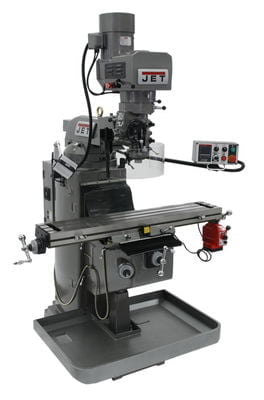

JTM-1050EVS2/230 Mill With Acu-Rite VUE DRO

Vertical Mills

Swing away control box houses an e-stop and puts all controls at the operators fingertips
The innovative design of the machine base provides an easier solution to level the machine without raising it up off the floor
Automatic oiler releases 3 to 6 cc/cy of lubrication at adjustable time intervals
For added safety, the heavy-duty spindle break stops the spindle and interrupts the power, preventing accidental start-ups
The electrical box has been relocated to the back of the mill and houses two 115V outlets for powered accessories
CSA/CUS Certified
Class 7 spindle bearings support the spindle for maximum rigidity in heavy cutting applications
Spindle head is internally cooled extending bearing, belt and motor life
Table and ways are hardened up to 54 HRC and precision ground for greater accuracy

UPC	731325452051
SAP Material Group	MW22
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-1050EVS2/230
SAP Owner	JMW
SAP Division	3
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	87.000
SAP Length	66.000
SAP Volume	209.344
SAP Width	63.000
Spindle Travel (In.)	5
Table Cross Travel (In.)	14-3/4
T-Slot Centers (In.)	2-1/2
Distance Spindle to Column (Min.) (In.)	4-3/4
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Work Table Weight Capacity (Lbs.)	840
Quill Diameter (In.)	3-3/8
Collet Capacity	1/8 - 7/8
Overall Dimensions (L x W x H) (In.)	66 x 63 x 87
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	60 - 4,500
Head Movement (Deg.)
Number of Axis	2
Weight (Lbs.)	2,860
Motor (HP)	3 HP, 230V, 3Ph
Style (Type)	EVS
Table Size (L x W) (In.)	10 x 50
Distance Spindle to Column (Max.) (In.)	26-3/4
T-Slots Number and Size (In.)	3 and 5/8
Digital Readout	ACU-RITE VUE
Travel of Knee (In.)	16-1/8
Travel of Ram (In.)	15-7/8
Max Distance Spindle to Table (In.)	20-3/4
Table Longitudinal Travel (In.)	35-1/3
Table Longitudinal Travel With Powerfeed (In.)	29-7/8
Saddle Width (In.)	11-1/2
Column Width (In.)	20
Inverter Type	Delta, B
number of axis	2
Spindle Taper (In. x TPI)	R-8

Part #: 690605

Price: $20,949.00

Quantity:
