JTM-1254RVS 12x54 R8 VS MILL 230/460V

Vertical Mills

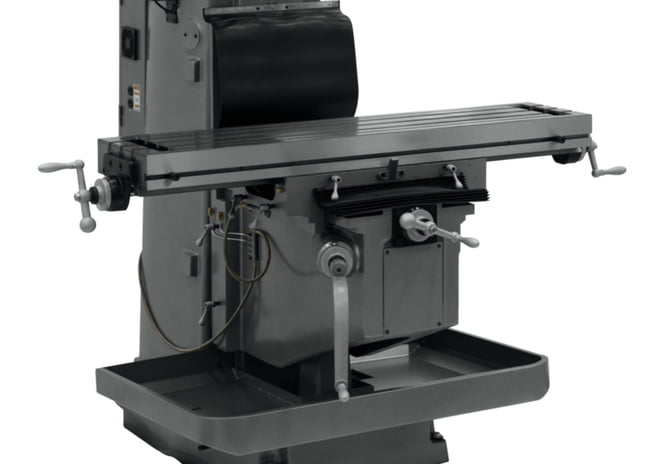

This JET 12" x 54" Vertical Metal Mill features the rugged stability of Meehanite Castings to ensure that every job is up to your standards.

JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph

SAP EAN Number Code (UPC)	731325503753
Model Number	JTM-1254RVS
SAP Base Unit of Measure	EA
SAP Commodity Code	8465.95.0060
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	92.125
SAP Unit of Dimension	IN
SAP Height	104.25
SAP Unit of Dimension	IN
SAP Width	79.875
SAP Unit of Dimension	IN
SAP Gross Weight	3969
SAP Weight Unit	LBS
SAP Net weight	3260
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
30 Point inspection	JET 30 Point
Collet Capacity	1/8 - 1
Distance Spindle to Column (Max.) (In.)	27-3/4
End User Sellable	No
Item Display Order	72.0000
Max Distance Spindle to Table (In.)	23
Motor (HP)	5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)	92-1/8 x 79-7/8 x 104-1/4
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015–.003–.006
Range of Spindle Speeds (RPM)	80 - 3,800
Configurator Option Type	Digital Readout
Saddle Width (In.)	25-5/8
Spindle Taper (In. x TPI) (English United States, Ecommerce)	R-8
Spindle Travel (In.)	5
Style (Type)	Variable Speed R8
Table Cross Travel (In.)	15-1/3
Table Longitudinal Travel (In.)	33-7/8
Table Longitudinal Travel With Powerfeed (In.)	28-1/4
Table Size (L x W) (In.)	12 x 54
Travel of Knee (In.)	19-1/4
Travel of Ram (In.)	25
T-Slot Centers (In.)	2-1/2
Weight (Lbs.)	3969.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	925

Part #: 690020

Price: $20,559.00

Quantity:
