JTM-1254RVS 203 3X-K, X,Y,Z PFD,APDB
JTM-1254RVS 203 3X-K, X,Y,Z PFD,APDBJTM-1254RVS 203 3X-K, X,Y,Z PFD,APDB

We combined durability, strength, and precision engineering to create 12 x 54 Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, JET mills provide ongoing automatic lubrication and quick nut spindle feed, along with the JET exclusive certified Meehanite castings that provide the end-user with an easier solution to leveling the machine without raising it off the floor. These heavy-duty mills are offered in both R-8 and NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty. CSA/CUS Certified.

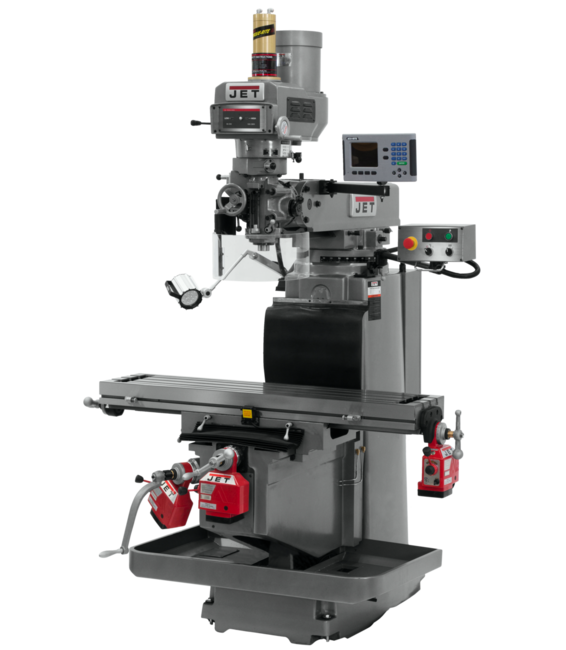

JTM-1254RVS with ACU-RITE 203 3X (K) DRO, X,Y&Z Powerfeeds & Air Power Drawbar

Features & Benefits

  • Adjustable gibs throughout
  • Dual locks on all moveable surfaces
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Spindle brake for rapid stopping of the spindle
  • Three Precision ground t-slots
  • Three-stage power downfeed with automatic stop
  • Two 115V outlets on electrical box for Powerfeeds only
SAP EAN Number Code (UPC)731325516739
Model NumberJTM-1254RVS
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length92.125
SAP Unit of DimensionIN
SAP Height104.25
SAP Unit of DimensionIN
SAP Width79.875
SAP Unit of DimensionIN
SAP Gross Weight3696
SAP Weight UnitLBS
SAP Net weight3260
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
BOM Products350193K,350194,350195,350196,690020,M203-164016J
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 1
Column Width (In.)14-1/4
Distance Spindle to Column (Max.) (In.)27-3/4
End User SellableNo
Item Display Order76.0000
Max Distance Spindle to Table (In.)23
Motor (HP)5HP, 230/460V, 3Ph
Number of Axis3 (Knee)
Overall Dimensions (L x W x H) (In.)92-1/8 x 79-7/8 x 104-1/4
Package NameAcu-Rite 203 3-Axis (Knee) DRO, X, Y & Z Powerfeed and Air Power Drawbar
Power Draw BarPheumatic
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)4-1/8
Quill Down Feed Rates (IPR).0015–.003–.008
Range of Spindle Speeds (RPM)80 - 3,800
Saddle Width (In.)25-5/8
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Variable Speed R8
Table Cross Travel (In.)15-1/3
Table Longitudinal Travel (In.)33-7/8
Table Longitudinal Travel With Powerfeed (In.)28-1/4
Table Size (L x W) (In.)12 x 54
Travel of Knee (In.)19-1/4
Travel of Ram (In.)25
T-Slot Centers (In.)2-1/2
Weight (Lbs.)3969.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)925

Part #: 698119

Price: $30,599.00
