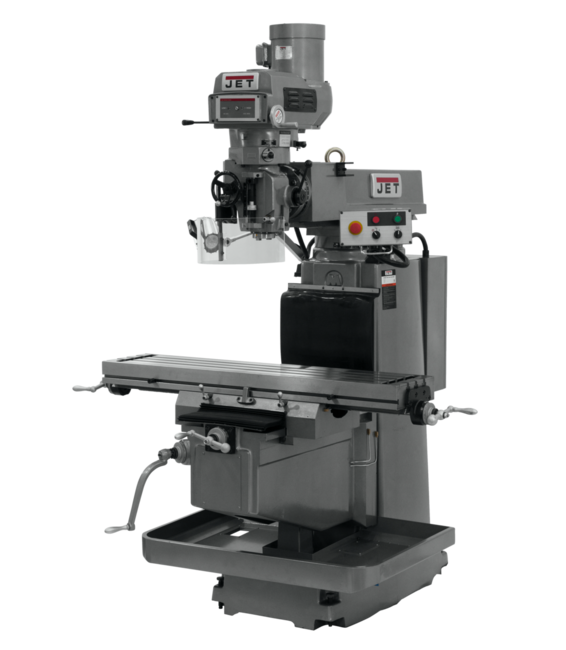

JTM-1254VS  12x54 NT40 VS MILL 230/460V
JTM-1254VS  12x54 NT40 VS MILL 230/460VJTM-1254VS  12x54 NT40 VS MILL 230/460VJTM-1254VS  12x54 NT40 VS MILL 230/460V
JTM-1254VS  12x54 NT40 VS MILL 230/460VJTM-1254VS  12x54 NT40 VS MILL 230/460VJTM-1254VS  12x54 NT40 VS MILL 230/460V

The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12 x 54 Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.

JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph

Features & Benefits

  • Adjustable gibs throughout
  • Automatic Lubrication every 180 minutes with a flow of 3-6cc reduces maintenance
  • Certified Meehanite castings
  • Dual locks on all moveable surfaces
  • Precision bored and honed milling head
  • Precision hardened and ground ways and table
  • Quick nut for spindle feed
  • Spindle Brake for rapid stopping of the spindle
  • Three Precision ground t-slots
  • Three-stage power downfeed with automatic stop
SAP EAN Number Code (UPC)731325503760
Model NumberJTM-1254VS
SAP Base Unit of MeasureEA
SAP Commodity Code8465.95.0060
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length92.125
SAP Unit of DimensionIN
SAP Height104.25
SAP Unit of DimensionIN
SAP Width79.875
SAP Unit of DimensionIN
SAP Gross Weight3969
SAP Weight UnitLBS
SAP Net weight3260
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
30 Point inspectionJET 30 Point
Distance Spindle to Column (Max.) (In.)27-3/4
End User SellableNo
Item Display Order65.0000
Max Distance Spindle to Table (In.)23
Motor (HP)5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)92-1/8 x 79-7/8 x 104-1/4
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)4-1/8
Quill Down Feed Rates (IPR).0015–.003–.008
Range of Spindle Speeds (RPM)80 - 3,800
Configurator Option TypeBase Machine
Saddle Width (In.)25-5/8
Spindle Taper (In. x TPI) (English United States, Ecommerce)NST #40
Spindle Travel (In.)5
Style (Type)Variable Speed NT40
Table Cross Travel (In.)15-1/3
Table Longitudinal Travel With Powerfeed (In.)33-7/8
Table Size (L x W) (In.)12 x 54
Travel of Knee (In.)19-1/4
Travel of Ram (In.)25
T-Slot Centers (In.)2-1/2
Weight (Lbs.)3969.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)925

Part #: 690025

Price: $21,799.00
