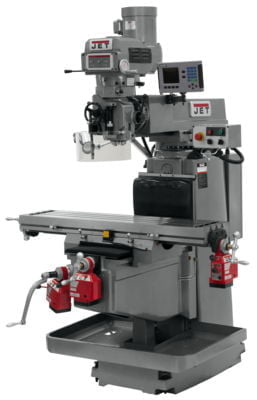

JTM-1254VS With ACU-RITE 200S 3X (K) DRO, X,Y&Z Powerfeeds

Name: JTM-1254VS With ACU-RITE 200S 3X (K) DRO, X,Y&Z Powerfeeds
Brand: Jet Tools
SKU: 698059
Price: 28799.00 USD
Availability: InStock

Vertical Mills

<< Back

JTM-1254VS With ACU-RITE 200S 3X (K) DRO, X,Y&Z Powerfeeds

Features & Benefits

Precision bored and honed milling head
High precision Class 7 spindle bearings
Quick Spindle Feed Nut
Three-stage power downfeed with automatic stop
Heavy-duty spindle brake
Precision hardened and ground ways and table
Three Precision ground t-slots
Turcite B on X & Y Axis
Adjustable gibs throughout

UPC	731325517163
SAP Material Group	MW22
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-1254VS
SAP Owner	JMW
SAP Division	3
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	104.250
SAP Length	92.125
SAP Volume	443.936
SAP Width	79.875
Spindle Travel (In.)	5
Table Cross Travel (In.)	15-1/3
T-Slot Centers (In.)	2-1/2
Distance Spindle to Column (Min.) (In.)	7 1/2
Quill Down Feed Rates (IPR)
Work Table Weight Capacity (Lbs.)	925
Quill Diameter (In.)	4-1/8
Collet Capacity	1/8 - 1
Overall Dimensions (L x W x H) (In.)	92-1/8 x 79-7/8 x 104-1/4
Range of Spindle Speeds (RPM)	80 - 3,800
Head Movement (Deg.)
Number of Axis	3 (Knee)
Weight (Lbs.)	3696
Motor (HP)	5HP, 230/460V, 3Ph
Style (Type)	Variable Speed NT40
Table Size (L x W) (In.)	12 x 54
Distance Spindle to Column (Max.) (In.)	27-3/4
Digital Readout	ACU-RITE 200S
Powerfeed	X, Y & Z-Axis
Travel of Knee (In.)	19-1/4
Travel of Ram (In.)	25
Max Distance Spindle to Table (In.)	23
Table Longitudinal Travel (In.)	33-7/8
Table Longitudinal Travel With Powerfeed (In.)	28-1/4
Saddle Width (In.)	25-5/8
Column Width (In.)	14-1/4
number of axis	3 (Knee)
Spindle Taper (In. x TPI)	NST #40

Part #: 698059

Price: $28,799.00
