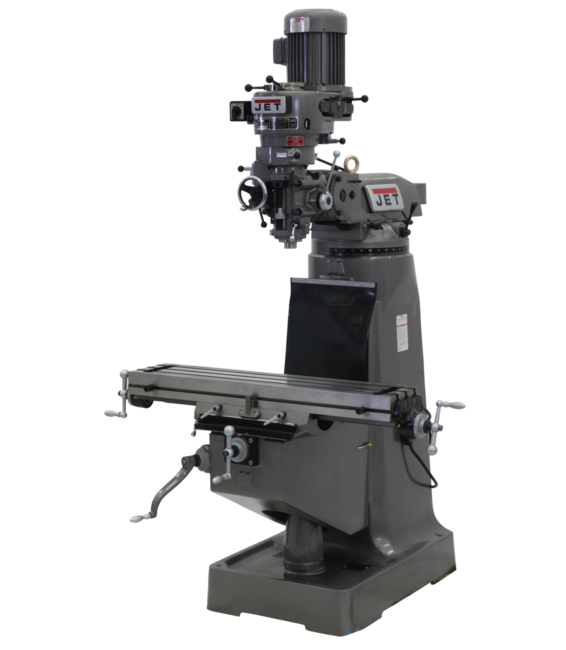

JTM-2 W 3X NMS300 DRO (K)

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite castings ensures you get everything you need from the JTM-1 and 2 models. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

JTM-1 Mill With 3-Axis Newall DP500 DRO (Knee)

Features & Benefits

  • Certified Meehanite castings
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included
SAP EAN Number Code (UPC)731325453850
Model NumberJTM-2
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Gross Weight2200
SAP Weight UnitLBS
SAP Net weight2200
SAP Weight UnitLBS
SAP Transportation GroupLTL
BOM Products690089,DP500M1230S16A
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)19
End User SellableNo
Max Distance Spindle to Table (In.)17-1/2
Motor (HP)2 HP, 115/230V, 1Ph
Number of Axis3 (Knee)
Number of Spindle Speeds8
Overall Dimensions (L x W x H) (In.)57 x 64 x 82
Package NameNewall DP500 DRO 3-Axis (Knee)
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)80 - 2,720
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Step Pulley R8
Table Cross Travel (In.)12-1/2
Table Longitudinal Travel (In.)23-7/8
Table Longitudinal Travel With Powerfeed (In.)20-2/7
Table Size (L x W) (In.)9 x 42
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2200.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)550

Part #: 692182

Price: $13,889.00
