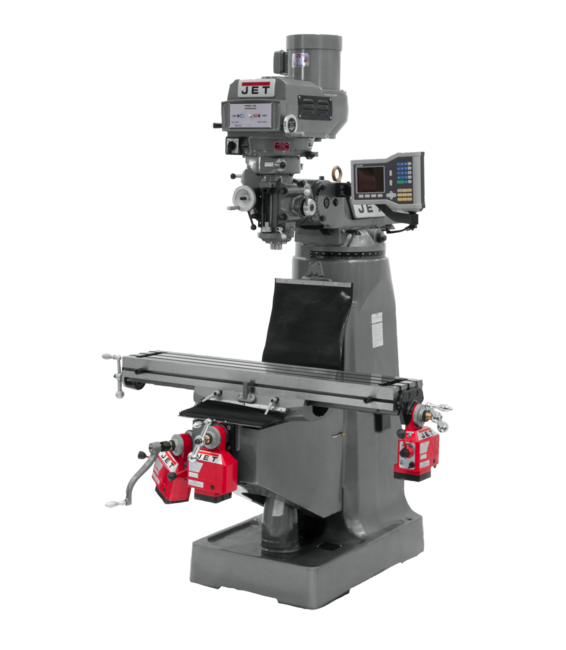

JTM-4VS-1  3X  203 Q DRO, X-PFD

JTM-4VS-1 3-Axis ACU-RITE 203 DRO (Quill), X-Axis Powerfeed

Features & Benefits

  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Chrome plated motor shaft with lower bearing support
  • Spindle head is internally cooled
  • Heavy duty splined motor drive
  • One piece quill pinion and shaft
  • Three stage power downfeed with automatic stop
  • Heavy duty spindle brake
UPC731325744668
SAP Material GroupMW24
SAP Material TypeZFIN
Model NumberJTM-4VS-1
SAP OwnerJMW
SAP Division1
SAP Country of OriginTW
SAP Product CategoryMW
SAP Rounding ProfileNA
SAP Height85.000
SAP Length63.000
SAP Volume202.982
SAP Width65.500
Prop 65None
Spindle Travel (In.)5
Table Cross Travel (In.)12
T-Slot Centers (In.)2-1/2
Distance Spindle to Column (Min.) (In.)4-1/2
Quill Down Feed Rates (IPR).0015 - .003 - .006
Work Table Weight Capacity (Lbs.)660
Quill Diameter (In.)3-3/8
Collet Capacity1/8 - 7/8
Overall Dimensions (L x W x H) (In.)66 x 63 x 85
Number of Spindle SpeedsVariable
Range of Spindle Speeds (RPM)60 - 4,200
Head Movement (Deg.)
Number of Axis2
Weight (Lbs.)2,420
Motor (HP)2 HP, 115/230V, 1Ph
Style (Type)Variable Speed R8
Table Size (L x W) (In.)9 x 49
Distance Spindle to Column (Max.) (In.)19
T-Slots Number and Size (In.)3 and 5/8
Digital ReadoutACU-RITE 203
PowerfeedX-Axis
Travel of Knee (In.)14-1/2
Travel of Ram (In.)13-3/8
Max Distance Spindle to Table (In.)17-1/2
Table Longitudinal Travel (In.)34
Table Longitudinal Travel With Powerfeed (In.)28-3/4
Spindle Taper (In. x TPI)R-8
Prewired (V.)230V, **Surcharge applies for 115V re-wire

Part #: 692068

Price: $17,369.00
