JTM-4VS-1 W/X & Y TPFA

Vertical Mills

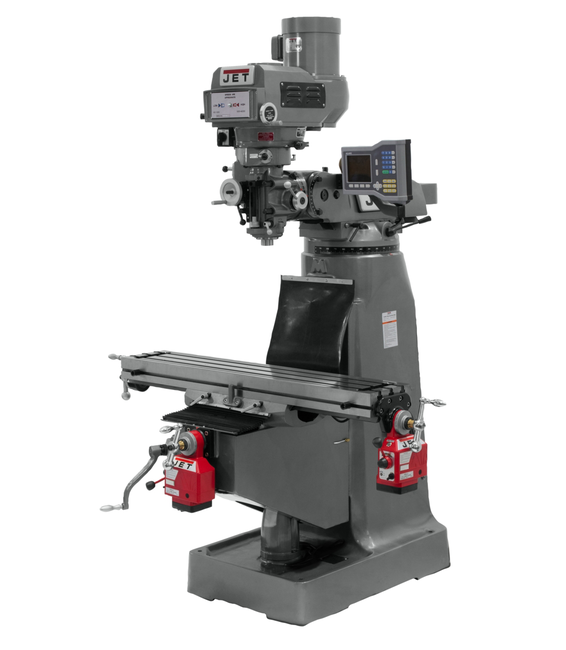

JTM-4VS-1 Mill With X and Y-Axis Powerfeeds

UPC	731325173550
SAP Material Group	140K
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-4VS-1
SAP Owner	JMW
SAP Division	1
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	85.000
SAP Length	63.000
SAP Volume	202.982
SAP Width	65.500
Prop 65	Cancer and Reproductive Harm
Spindle Travel (In.)	5
Table Cross Travel (In.)	12
T-Slot Centers (In.)	2-1/2
Distance Spindle to Column (Min.) (In.)	4-1/2
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Work Table Weight Capacity (Lbs.)	660
Quill Diameter (In.)	3-3/8
Collet Capacity	1/8 - 7/8
Overall Dimensions (L x W x H) (In.)	66 x 63 x 85
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	60 - 4,200
Head Movement (Deg.)
Weight (Lbs.)	2,420
Motor (HP)	2 HP, 115/230V, 1Ph
Style (Type)	Variable Speed R8
Table Size (L x W) (In.)	9 x 49
Distance Spindle to Column (Max.) (In.)	19
T-Slots Number and Size (In.)	3 and 5/8
Powerfeed	X and Y-Axis
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Max Distance Spindle to Table (In.)	17-1/2
Table Longitudinal Travel (In.)	34
Table Longitudinal Travel With Powerfeed (In.)	28-3/4
Spindle Taper (In. x TPI)	R-8
Prewired (V.)	230V, **Surcharge applies for 115V re-wire

Part #: 690197

Price: $14,939.00
