JTM-4VS 3X CNC & APDB

Name: JTM-4VS 3X CNC & APDB
Brand: Jet
SKU: 690949
Price: 46399.00 USD
Availability: InStock

CNC Mills

JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty

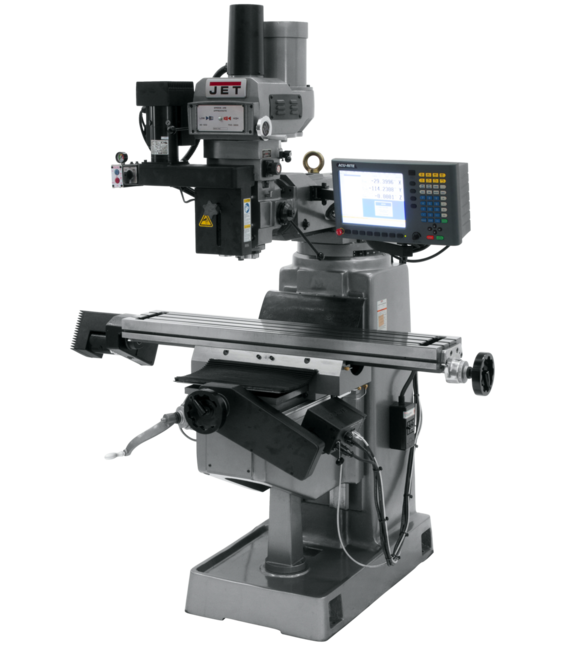

JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar

SAP EAN Number Code (UPC)	731325455717
Model Number	JTM-4VS CNC G2
SAP Base Unit of Measure	EA
SAP Commodity Code	8459.69.0090
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Gross Weight	2600
SAP Weight Unit	LBS
SAP Net weight	2600
SAP Weight Unit	LBS
SAP Transportation Group	LTL
BOM Products	351188K,690182,CNC29493
30 Point inspection	JET 30 Point
CNC Package	ACU-RITE MILLPWR® G2
Collet Capacity	1/8 - 7/8
Distance Spindle to Column (Max.) (In.)	19
End User Sellable	No
Item Display Order	18.0000
Max Distance Spindle to Table (In.)	17-1/2
Motor (HP)	3 HP, 230/460V, 3Ph
Number of Axis	3
Overall Dimensions (L x W x H) (In.)	66 x 63 x 85
Power Draw Bar	Pneumatic
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Range of Spindle Speeds (RPM)	60 - 4,200
Spindle Taper (In. x TPI) (English United States, Ecommerce)	R-8
Spindle Travel (In.)	5
Style (Type)	CNC
Table Cross Travel (In.)	12
Table Longitudinal Travel (In.)	34
Table Size (L x W) (In.)	9 x 49
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
T-Slot Centers (In.)	2-1/2
Weight (Lbs.)	2420.0000
Weight (Lbs.) (Unit)	Pound
Work Table Weight Capacity (Lbs.)	660

Part #: 690949

Price: $46,399.00

Quantity:
