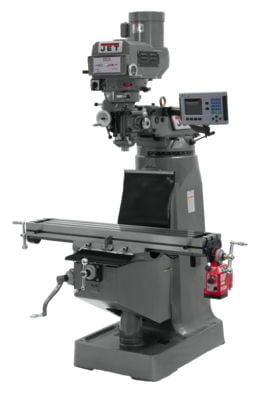

JTM-4VS Mill With 3-Axis ACU-RITE 200S DRO (Quill) and X-Axis Powerfeeds

Name: JTM-4VS Mill With 3-Axis ACU-RITE 200S DRO (Quill) and X-Axis Powerfeeds
Brand: Jet Tools
SKU: 690221
Price: 17249.00 USD
Availability: InStock

Vertical Mills

<< Back

Features & Benefits

Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome plated motor shaft with lower bearing support
Spindle head is internally cooled
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake

UPC	662755516405
SAP Material Group	140K
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	JTM-4VS
SAP DChain Status	4
SAP Owner	JMW
SAP Division	1
SAP Country of Origin	TW
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	85.000
SAP Length	63.000
SAP Volume	202.982
SAP Width	65.500
Spindle Travel (In.)	5
Table Cross Travel (In.)	12
T-Slot Centers (In.)	2-1/2
Distance Spindle to Column (Min.) (In.)	4-1/2
Quill Down Feed Rates (IPR)	.0015 - .003 - .006
Work Table Weight Capacity (Lbs.)	660
Quill Diameter (In.)	3-3/8
Collet Capacity	1/8 - 7/8
Overall Dimensions (L x W x H) (In.)	66 x 63 x 85
Number of Spindle Speeds	Variable
Range of Spindle Speeds (RPM)	60 - 4,200
Head Movement (Deg.)
Number of Axis	3 (Quill)
Weight (Lbs.)	2,420
Motor (HP)	3 HP, 230/460V, 3Ph
Style (Type)	Variable Speed R8
Table Size (L x W) (In.)	9 x 49
Distance Spindle to Column (Max.) (In.)	19
T-Slots Number and Size (In.)	3 and 5/8
Digital Readout	ACU-RITE 200S
Powerfeed	X-Axis
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Max Distance Spindle to Table (In.)	17-1/2
Table Longitudinal Travel (In.)	34
Table Longitudinal Travel With Powerfeed (In.)	28-3/4
number of axis	3 (Quill)
Spindle Taper (In. x TPI)	R-8

Part #: 690221

Price: $17,249.00
