JTM1050VS2 W/ LED WKLMP_ SPNDL GRD

Vertical Mills

<< Back

JTM1050VS2 W/ LED WKLMP_ SPNDL GRD
JTM1050VS2 W/ LED WKLMP_ SPNDL GRDJTM1050VS2 W/ LED WKLMP_ SPNDL GRDJTM1050VS2 W/ LED WKLMP_ SPNDL GRD
JTM1050VS2 W/ LED WKLMP_ SPNDL GRDJTM1050VS2 W/ LED WKLMP_ SPNDL GRDJTM1050VS2 W/ LED WKLMP_ SPNDL GRD
JTM1050VS2 W/ LED WKLMP_ SPNDL GRD

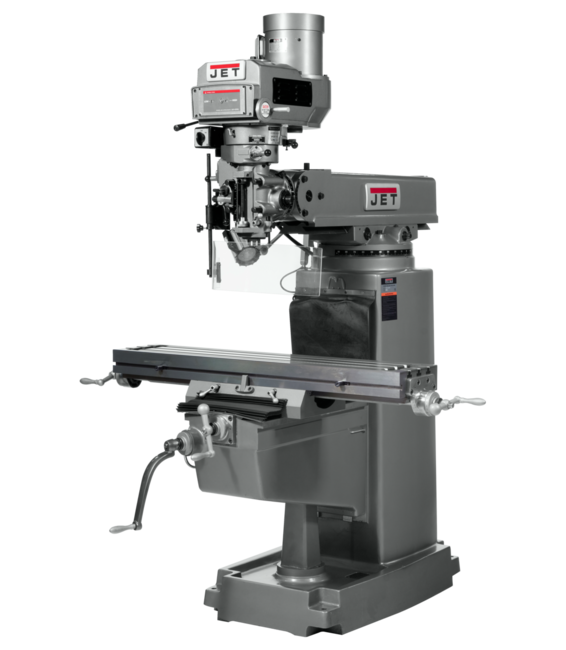

The JET JTM-1050VS2 features our proprietary Meehanite column castings, a heavy-duty hardened and ground 10 x 50 table, and high precision class 7 precision bearings support the spindle. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty

JTM-1050VS2 Variable Speed Mill with LED Worklamp and Spindle Guard, 230/460V, 3Ph

Features & Benefits

  • Chrome lead screws on X and Y axis
  • Hardened and ground table
  • Hardened and ground table capable of supporting 840 pounds
  • Internal coolant tank built into base for use with optional coolant system (coolant pump not included)
  • JET's proprietary certified Meehanite column castings
  • One shot lubrication system
  • Precision bored and honed milling head
  • Three stage power downfeed with automatic stop
SAP EAN Number Code (UPC)731325764932
Model NumberJTM-1050VS2
SAP Base Unit of MeasureEA
SAP Commodity Code9405.40.8440
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length63
SAP Unit of DimensionIN
SAP Height89.37
SAP Unit of DimensionIN
SAP Width63
SAP Unit of DimensionIN
SAP Gross Weight2568
SAP Weight UnitLBS
SAP Net weight2466
SAP Weight UnitLBS
SAP Transportation GroupLTL
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 5/8
Column Width (In.)13
Distance Spindle to Column (Max.) (In.)27
Easy2 URLhttp://content.jettools.com/assets/3D/JET_JTM1050VS2_360.html
End User SellableNo
Item Display Order1.0000
Motor (HP)3 HP,230/460V ,3Ph
Overall Dimensions (L x W x H) (In.)63 x 63 x 89
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 / .003 / .008
Range of Spindle Speeds (RPM)60-500/500-4200
Saddle Width (In.)20
Spindle Taper (In. x TPI) (English United States, Ecommerce)R8
Spindle Travel (In.)5
Table Cross Travel (In.)14-3/4
Table Longitudinal Travel (In.)34-1/4
Table Size (L x W) (In.)10 x 50
Travel of Knee (In.)16-1/8
T-Slot Centers (In.)2-1/2
Weight (Lbs.)2466.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)840

Part #: 691050

Price: $15,559.00
