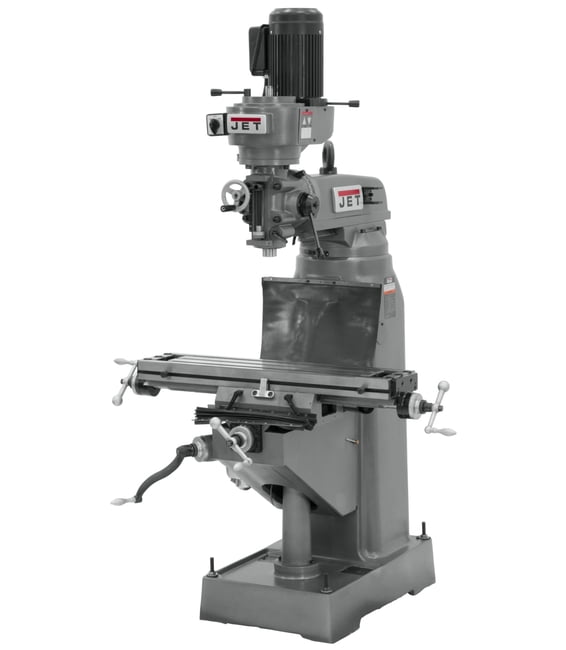

JVM-836-3 VERTICAL MILL (TEXT)
JVM-836-3 VERTICAL MILL (TEXT)JVM-836-3 VERTICAL MILL (TEXT)JVM-836-3 VERTICAL MILL (TEXT)
JVM-836-3 VERTICAL MILL (TEXT)JVM-836-3 VERTICAL MILL (TEXT)JVM-836-3 VERTICAL MILL (TEXT)

The precision bored and honed milling head, coupled with the hardened and ground 8 x 36 table ensures retention of tolerances, while locks on all moving surfaces increase user safety. The JET JVM-836 has features you've come to expect that are backed by the industry-leading JET Two Year Warranty

JVM-836-3 Step Pulley Milling Machine 230V 3Ph

Features & Benefits

  • Graduated scale on column
  • Hardened and ground precision table
  • Head tilts left or right
  • High precision spindle bearings
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision ground dovetail ways
SAP EAN Number Code (UPC)662755195037
Model NumberJVM-836-3
SAP Base Unit of MeasureEA
SAP Commodity Code8459.69.0020
SAP Country of OriginChina
Warranty2 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight1610
SAP Weight UnitLBS
SAP Net weight1610
SAP Weight UnitLBS
SAP Transportation GroupLTL
30 Point inspectionJET 30 Point
Collet Capacity1/8 - 7/8
Distance Spindle to Column (Max.) (In.)15-3/4
End User SellableNo
Item Display Order18.0000
Max Distance Spindle to Table (In.)13-3/4
Motor (HP)1-1/2 HP, 230V Only, 3Ph
Number of Spindle Speeds10
Overall Dimensions (L x W x H) (In.)55 x 52 x 78
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)3-3/8
Quill Down Feed Rates (IPR).0015 - .003 - .006
Range of Spindle Speeds (RPM)120 - 1,550
Configurator Option TypeBase Machine
Spindle Taper (In. x TPI) (English United States, Ecommerce)R-8
Spindle Travel (In.)5
Style (Type)Step Pulley R8
Table Cross Travel (In.)9-1/2
Table Longitudinal Travel (In.)22-1/4
Table Longitudinal Travel With Powerfeed (In.)18
Table Size (L x W) (In.)7-7/8 x 35-3/4
Travel of Knee (In.)14
Travel of Ram (In.)10-1/2
T-Slot Centers (In.)2-1/2
Weight (Lbs.)1610.0000
Weight (Lbs.) (Unit)Pound
Work Table Weight Capacity (Lbs.)500

Part #: 690038

Price: $9,299.00
