HBS-1018 HORIZONTAL BANDSAW

Manual & Semi-Automatic Horizontal Bandsaws

Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.

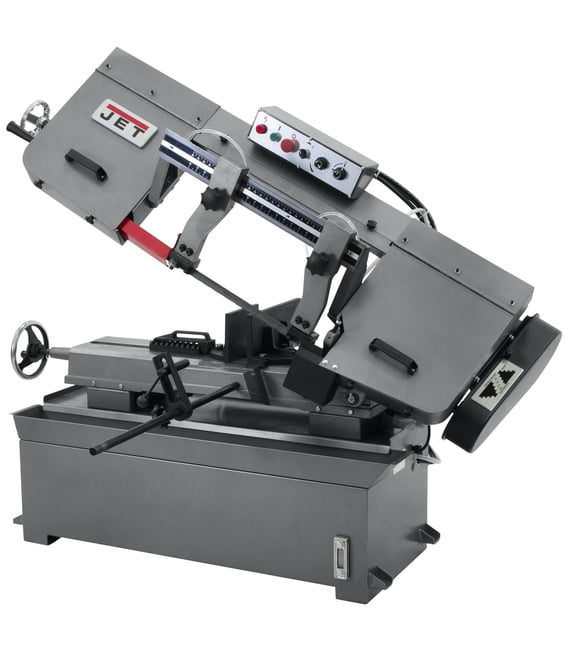

HBS-1018W, 10" x 18" Horizontal Bandsaw

Features & Benefits

Adjustable Material Stop
Blade guides feature parallel double-row ball bearing support
Built-in, self-propelled blade brush extends blade life
Carbide blade guides feature parallel double-row ball bearing support
Coolant is distributed through the blade guides
Fully adjustable hydraulic downfeed with separate on/off control valve
Large hand wheel and built-in gauge provides easy blade tensioning
Proprietary oversized chip tray design minimizes over spray and reduces clean up
Quick-positioning vise with fully adjustable jaws

SAP EAN Number Code (UPC)	662755753411
Model Number	HBS-1018W
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	69.25
SAP Unit of Dimension	IN
SAP Height	42.5
SAP Unit of Dimension	IN
SAP Width	69.12
SAP Unit of Dimension	IN
SAP Gross Weight	906
SAP Weight Unit	LBS
SAP Net weight	864
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	414308,414310,418446,418447
Amperage	13A
Bed Height (In.)	23.5
Blade Speeds (SFPM)	82, 132, 210, 330
Blade Speed (SFPM)	82, 132, 210, 330
Blade Wheel Diameter (In.)	14
Cutting Capacity (W x D) (In.)	10 x 18
Drive	Belt Drive
Easy2 URL	http://content.jettools.com/assets/3D/JET_424473_360.html
End User Sellable	No
Item Display Order	6.0000
Motor (HP)	2 HP, 230V Only, 1Ph
Overall Dimensions (L x W x H) (In.)	69 x 28 x 42-3/4
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	10 x 7-1/2
Rectangle at 90 Degrees (In.)	10 x 16 and 6-1/2 x 18
Round at 45 Degrees (In.)	7-1/2
Round at 90 Degrees (In.)	10
Vise Swivels (Deg.)	45°
Weight (Lbs.)	906.0000
Weight (Lbs.) (Unit)	Pound

Part #: 414473

Price: $6,019.00

Quantity:
