HBS-1220DC SEMI AUTO DUAL COLUMN SAW
HBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAW
HBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAW
HBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAWHBS-1220DC SEMI AUTO DUAL COLUMN SAW

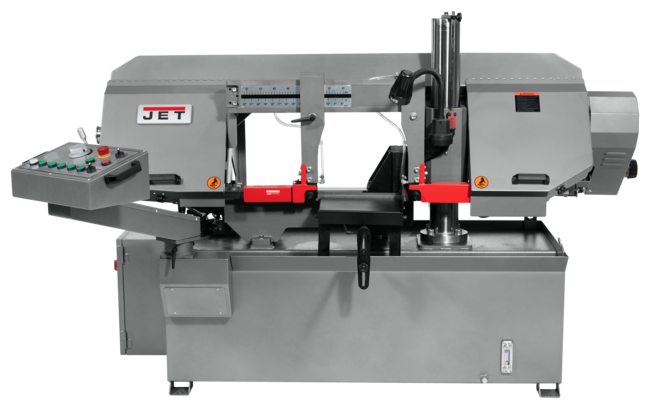

JET's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.

HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase

Features & Benefits

  • Heavy duty construction reduces vibration and deflection
  • Coolant is distributed through the blade guides through an integrated coolant system
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Motor designed for continuous operation
  • Powerful gearbox for long life
  • Two column design for more productive cutting
SAP EAN Number Code (UPC)731325868647
Model NumberHBS1220DC
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length98
SAP Unit of DimensionIN
SAP Height54.5
SAP Unit of DimensionIN
SAP Width14.5
SAP Unit of DimensionIN
SAP Gross Weight1740
SAP Weight UnitLBS
SAP Net weight1420
SAP Weight UnitLBS
SAP Transportation GroupLTL
Blade Size (In.)1-1/8 x 0.043 x 155-1/2
30 Point inspectionJET 30 Point
Band Saw Size/Wheel Diameter (In.)16
Bed Height (In.)27
Blade Length (In.)155-1/2
Blade Speeds (SFPM)86,157,228,330
Blade Speed (SFPM)95 - 295
Blade Wheel Diameter (In.)16
Blade Width (In.)0.043
Coolant Pump Motor1/8HP, 230/4660V, 3Ph
Cutting Capacity Height (In.)12.0000
Cutting Capacity Height (In.) (Unit)Inch
Cutting Capacity Width (In.)20.0000
DriveMechanical Variable Speed
Easy2 URLhttps://content.jettools.com/assets/3d/JET_800891150_360.html
Electrics3HP, 230/460V, 3Ph
Gross Weight (Lbs)1628.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order1.0000
Motor (HP)3 HP, 230/460V, 1Ph
Motor Phase3
Motor Power (HP)3
Motor Voltage (V.)230/460
Net Weight (Lbs.)1420.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)81 x 42-1/2 x 54-1/2
Prewired Voltage (V.)230
Prop 65Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.)12 x 20
Round at 90 Degrees (In.)12
Shipping Weight (Lbs.)1628.0000
Shipping Weight (Lbs.) (Unit)Pound
Square at 90 Degrees (In.)12
Throat Depth (In.)12 x 12
Weight (Lbs.)1420.0000
Weight (Lbs.) (Unit)Pound
Oil Pump Motor1HP, 230/460V, 3Ph

Part #: 413400

Price: $14,969.00
