HBS-1220MSA 12X20 SEMI AUTO MITERING SAW
HBS-1220MSA 12X20 SEMI AUTO MITERING SAWHBS-1220MSA 12X20 SEMI AUTO MITERING SAWHBS-1220MSA 12X20 SEMI AUTO MITERING SAW
HBS-1220MSA 12X20 SEMI AUTO MITERING SAWHBS-1220MSA 12X20 SEMI AUTO MITERING SAWHBS-1220MSA 12X20 SEMI AUTO MITERING SAW

This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45 angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of materials.

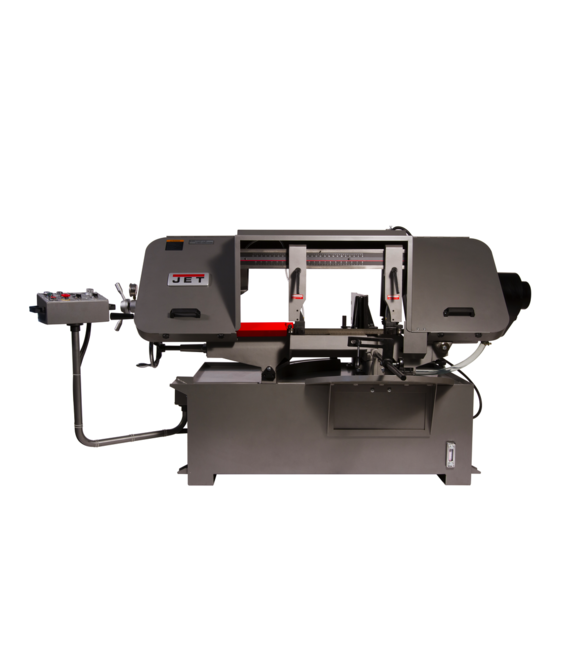

HBS-1220MSA, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw

Features & Benefits

  • Automatic blade breakage sensor detects accidental breakage and interrupts the power
  • Auxiliary roller support on back of vise
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Circulating coolant system through both blade guides
  • CSA/CUS Certified
  • Heavy Duty construction
  • One piece blade cover makes changing blades extremely easy
  • Semi-automatic bow raises after cut to predetermined height
  • Swing away control arm puts the controls at the Operator fingertips
SAP EAN Number Code (UPC)731325750836
Model NumberHBS-1220MSA
SAP Base Unit of MeasureEA
SAP Commodity Code8466.93.9885
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length87.7
SAP Unit of DimensionIN
SAP Height53
SAP Unit of DimensionIN
SAP Width32.3
SAP Unit of DimensionIN
SAP Gross Weight1606
SAP Weight UnitLBS
SAP Net weight1430
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
End User SellableNo
Head Movement (Deg.)45
Item Display Order18.0000
Maximum Vise Opening (In.)19-/5/8
Motor (HP)3 HP , 230/460V, 3-Ph
Overall Dimensions (L x W x H) (In.)87 x 31.5 x 53
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)12-9/16 x 11-7/32
Round at 45 Degrees (In.)11-7/32
Round at 90 Degrees (In.)11-13/16
Weight (Lbs.)1606.0000
Weight (Lbs.) (Unit)Pound

Part #: 424476

Price: $15,539.00
