HBS-1220MSAH 12X20SEMI AUTO MITR HYDVISE

Mitering Horizontal Bandsaws

<< Back

HBS-1220MSAH 12X20SEMI AUTO MITR HYDVISE
HBS-1220MSAH 12X20SEMI AUTO MITR HYDVISEHBS-1220MSAH 12X20SEMI AUTO MITR HYDVISEHBS-1220MSAH 12X20SEMI AUTO MITR HYDVISE
HBS-1220MSAH 12X20SEMI AUTO MITR HYDVISEHBS-1220MSAH 12X20SEMI AUTO MITR HYDVISEHBS-1220MSAH 12X20SEMI AUTO MITR HYDVISE

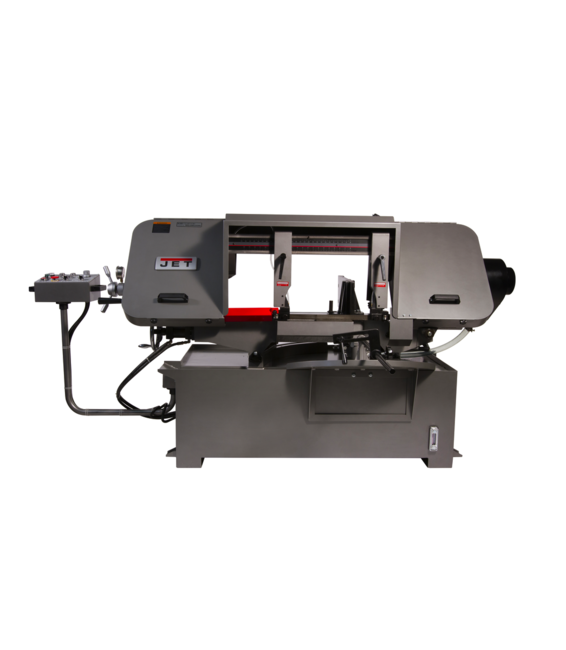

This JET large capacity , semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatic while the mitering head allows the user to cut up to a 45 angle. The hydraulic downfeed control is easily adjusted, enabling feed rates to evolve with various types of material while the hydraulic vise makes set up easier for the operator. CSA/CUS Certified.

HBS-1220MSAH, 12" x 20" Semi-Automatic Mitering Variable Speed Bandsaw with Hydraulic Vise

Features & Benefits

  • Automatic blade breakage sensor detects accidental breakage and interrupts the power
  • Auxiliary roller support on back of vise
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Circulating coolant system through both blade guides
  • One piece blade cover makes changing blades extremely easy
  • Semi-automatic bow raises after cut to predetermined height
SAP EAN Number Code (UPC)731325750829
Model NumberHBS-1220MSAH
SAP Base Unit of MeasureEA
SAP Commodity Code8466.93.9885
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length87.7
SAP Unit of DimensionIN
SAP Height53
SAP Unit of DimensionIN
SAP Width32.3
SAP Unit of DimensionIN
SAP Gross Weight1625
SAP Weight UnitLBS
SAP Net weight1450
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
End User SellableNo
Head Movement (Deg.)45
Item Display Order19.0000
Maximum Vise Opening (In.)19-5/8
Motor (HP)3 HP , 230/460V, 3-Ph
Overall Dimensions (L x W x H) (In.)87-3/4 x 31.5 x 53
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)12-9/16 x 11-7/32
Round at 45 Degrees (In.)11-7/32
Round at 90 Degrees (In.)11-13/16

Part #: 424475

Price: $16,889.00
Quantity:
