HBS-56MVS 5x6 MiITERING VARI SPEED SAW

Mitering Horizontal Bandsaws

<< Back

HBS-56MVS 5x6 MiITERING VARI SPEED SAW
HBS-56MVS 5x6 MiITERING VARI SPEED SAWHBS-56MVS 5x6 MiITERING VARI SPEED SAWHBS-56MVS 5x6 MiITERING VARI SPEED SAW
HBS-56MVS 5x6 MiITERING VARI SPEED SAWHBS-56MVS 5x6 MiITERING VARI SPEED SAWHBS-56MVS 5x6 MiITERING VARI SPEED SAW

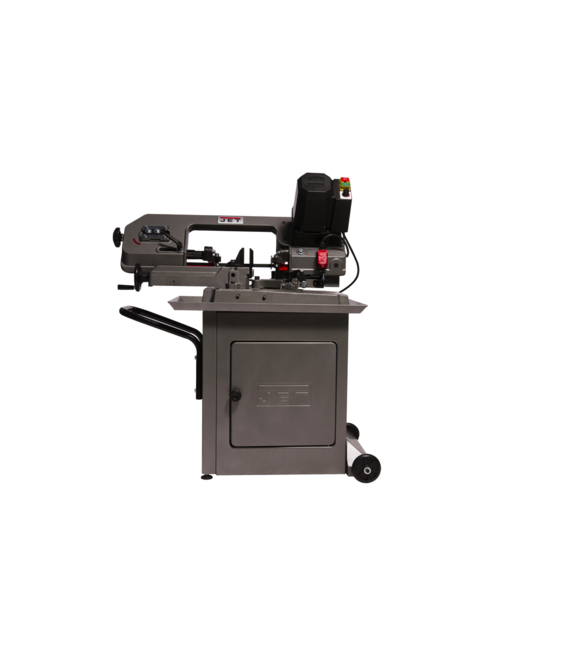

This JET Variable Speed, Mitering Bandsaw packs the features in a small package. The exclusive 5x6 Portable Variable Speed Mitering Bandsaw includes a newly designed motor with a 3-step gear transmission for unprecedented torque output. The versatile heavy-duty casted head swivels for a maximum cut at 45 & 60 allowing precision cuts without the hassle of moving the material. CSA/CUS Certified.

HBS-56MVS, Variable Speed, Mitering 5" x 6" Horizontal Bandsaw, .5HP 115V

Features & Benefits

  • Front legs feature leveling pads
  • Fully adjustable ball bearing blade guides
  • Hardened Ferrous 82-130 SFPM
  • Quick speed changes with the turn of a dial, no more belt changes
  • Variable Speed gives you the ability to cut various material
  • Wheels come standard for ease of movement around your shop
SAP EAN Number Code (UPC)731325727340
Model NumberHBS-56MVS
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0064
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length18
SAP Unit of DimensionIN
SAP Height41
SAP Unit of DimensionIN
SAP Width17.5
SAP Unit of DimensionIN
SAP Gross Weight176
SAP Weight UnitLBS
SAP Net weight172
SAP Weight UnitLBS
SAP Transportation GroupLTL
Blade Size (In.)1/2 x .025 x 64-1/2
Amperage3.8
Amperage Draw @ 115V 1Ph3.8
Bed Height (In.)28
Blade Speeds (SFPM)Variable, 80-230
Blade Speed (SFPM)Variable 80-230
Blade Wheel Diameter (In.)7-3/8
Electrics1/2HP, 115/230V/ 1Ph Prewired 115V
End User SellableNo
Gross Weight (Lbs)147.0000
Gross Weight (Lbs) (Unit)Pound
Item Display Order23.0000
Motor (HP)1/2 HP, 115V, Single Phase
Net Weight (Lbs.)136.0000
Net Weight (Lbs.) (Unit)Pound
Overall Assembled (Bow Lowered) (L x W x H)38.58 x 20.47 x 47.3
Overall Dimensions (L x W x H) (In.)38.58 x 20.47 x 43.3
Prewired Voltage (V.)115
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)3-3/4 x 2-1/3
Rectangle at 60 Degrees (In.)1-1/4 x 1-3/4 , 5 x 1-3/4
Rectangle at 90 Degrees (In.)5 x 6 , 2 x 6
Round at 45 Degrees (In.)3-3/4
Round at 90 Degrees (In.)5
Shipping Dimensions (L x W x H) (In.)35.43 x 17.5 x 21.65
Shipping Weight (Lbs.)147.0000
Shipping Weight (Lbs.) (Unit)Pound
Vise Swivels (Deg.)0 - 60
Weight (Lbs.)147.0000
Weight (Lbs.) (Unit)Pound

Part #: 414558

Price: $1,329.00
