The JET HBS-814GH was engineered with the operator in mind. An easy access control panel and heavy-duty geared head transmission for quick speed change means productivity never slows. Like every JET machine we manufacture, professionals know they can rely on this saw when the project is on the line.

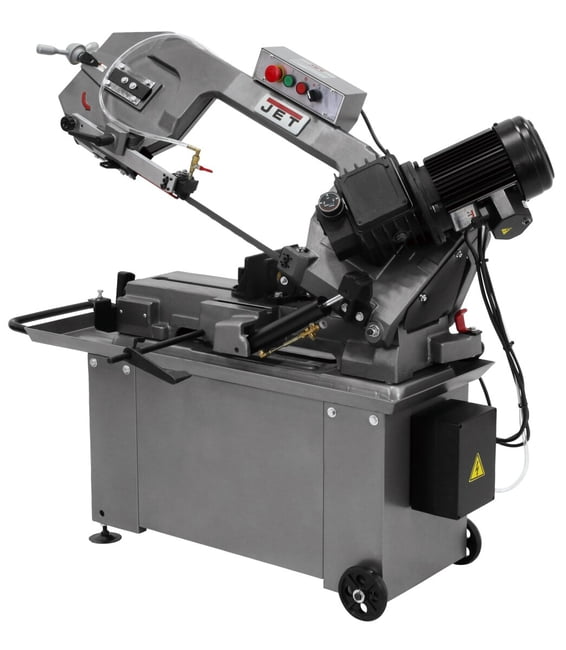

HBS-814GH, 8" x 14" Horizontal Geared Head Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Easily accessible saw control panel
  • Fully adjustable hydraulic downfeed system
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Heavy-duty geared head transmission for quick speed changes
  • Quick-positioning vise with fully adjustable jaws
  • Quick-positioning vise with fully adjustable jaws, swivels to 45
  • Wheels permit easy storage and movement
SAP EAN Number Code (UPC)662755523434
Model NumberHBS-814GH
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight342
SAP Weight UnitLBS
SAP Net weight287
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products5674032,5674033,5674034
Bed Height (In.)26
Blade Speeds (SFPM)135, 197, 256
Blade Wheel Diameter (In.)12
DriveGeared Head
End User SellableNo
Item Display Order15.0000
Motor (HP)1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)51-1/2 x 18-1/8 x 44
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)6-1/2 x 6 and 2 x 7
Rectangle at 90 Degrees (In.)14 x 8 and 2 x 14
Round at 45 Degrees (In.)6-1/2
Round at 90 Degrees (In.)8
Sell Sheets Asset Collection[414466_ss_pdf],[414466_ss_en_pdf]
Vise Swivels (Deg.)45°
Weight (Lbs.)287.0000
Weight (Lbs.) (Unit)Pound

Part #: 414466

Price: $3,569.00
