HBS-916 HORIZONTAL BANDSAW

Manual & Semi-Automatic Horizontal Bandsaws

Large handwheel, built-in gauge, blade guides, quick-positioning vise and removable chip tray are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time

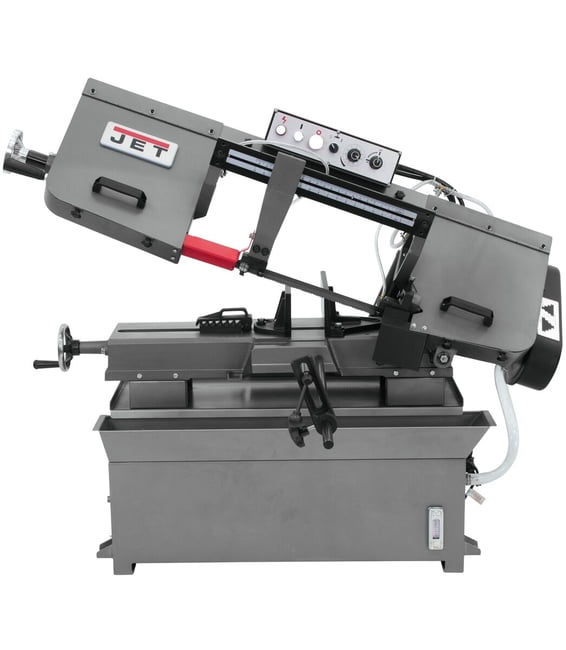

HBS-916, 9" x 16" Horizontal Bandsaw

Features & Benefits

Adjustable Material Stop
Blade guides feature parallel double-row ball bearing support
Built-in, self-propelled blade brush extends blade life
Carbide blade guides feature parallel double-row ball bearing support
Coolant is distributed through the blade guides
Fully adjustable hydraulic downfeed with separate on/off control valve
Large hand wheel and built-in gauge provides easy blade tensioning
Proprietary oversized chip tray design minimizes over spray and reduces clean up
Quick-positioning vise with fully adjustable jaws
Quick-positioning vise with fully adjustable jaws, swivels to 45

SAP EAN Number Code (UPC)	662755607745
Model Number	HBS-916
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Unit of Dimension	IN
SAP Gross Weight	704
SAP Weight Unit	LBS
SAP Net weight	625
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Accessories Products	418443,418462
Amperage	20/10A
Blade Speeds (SFPM)	82, 132, 170, 235
Blade Speed (SFPM)	82, 132, 170, 235
Blade Wheel Diameter (In.)	13
Cutting Capacity (W x D) (In.)	9 x 16
Drive	Belt Drive
Easy2 URL	http://content.jettools.com/assets/3D/JET_578634_360.html
End User Sellable	No
Item Display Order	10.0000
Motor (HP)	1-1/2 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	65 x 28 x 42
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	9 x 6-1/8
Rectangle at 90 Degrees (In.)	8-1/2 x 14 and 2 x 16
Round at 45 Degrees (In.)	6-1/8
Round at 90 Degrees (In.)	9
Vise Swivels (Deg.)	45°
Weight (Lbs.)	818.0000
Weight (Lbs.) (Unit)	Pound

Part #: 414468

Price: $5,179.00

Quantity:
