HBS-916EVS 9x16 EVS Saw
HBS-916EVS 9x16 EVS SawHBS-916EVS 9x16 EVS SawHBS-916EVS 9x16 EVS Saw

Electronic variable speed, oversized removable chip tray, large handwheel, built-in gauge, blade guides and quick-positioning vise that swivels to 45are but a few of the features that make this JET Horizontal Bandsaw among the best when compared to the competition. Efficiency, precision and functionality combined to deliver superior results time after time.

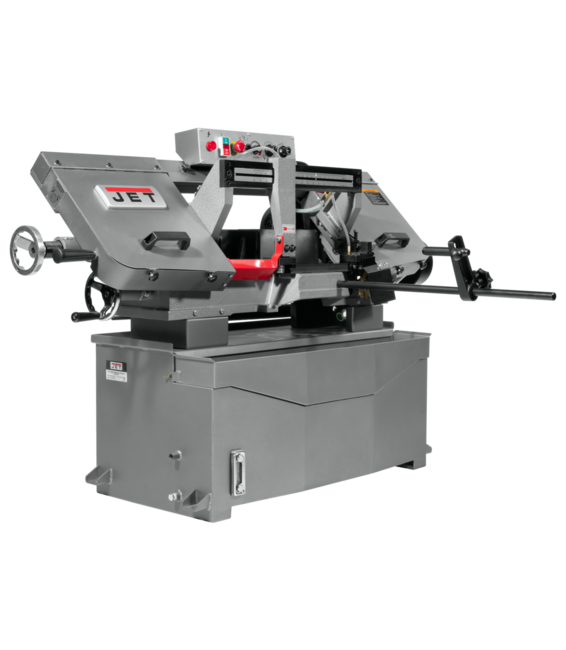

HBS-916EVS, 9" x 16" EVS (Electronic Variable Speed) Horizontal Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Carbide blade guides feature parallel double-row ball bearing support
  • Coolant is distributed through the blade guides
  • Electronically controlled blade speed from 82 - 330 SFPM
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Standard coolant system with coolant is distributed through the blade guides
SAP EAN Number Code (UPC)731325806885
Model NumberHBS-916EVS
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length67
SAP Unit of DimensionIN
SAP Height46
SAP Unit of DimensionIN
SAP Width25
SAP Unit of DimensionIN
SAP Gross Weight704
SAP Weight UnitLBS
SAP Net weight625
SAP Weight UnitLBS
SAP Transportation GroupParcel
Amperage5
Amperage Draw @ 115V 1Ph5
Bed Height (In.)23.5
Blade Length (In.)119-1/2
Blade Speeds (SFPM)(EVS ) 82-330
Blade Speed (SFPM)EVS 82 - 330
Blade Wheel Diameter (In.)13
Cutting Capacity (W x D) (In.)9 x 16
DriveEVS
Easy2 URLhttp://content.jettools.com/assets/3D/JET_424469_360.html
End User SellableNo
Item Display Order11.0000
Motor (HP)1-1/2
Net Weight (Lbs.)726.0000
Net Weight (Lbs.) (Unit)Pound
Overall Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
Prewired Voltage (V.)115
Prop 65None
Rectangle at 45 Degrees (In.)9 x 6-1/8
Rectangle at 90 Degrees (In.)8-1/2 x 14 and 2 x 16
Round at 45 Degrees (In.)6-1/8
Round at 90 Degrees (In.)9
Shipping Dimensions (L x W x H) (In.)67 x 25 x 46-1/4
Shipping Weight (Lbs.)818.0000
Shipping Weight (Lbs.) (Unit)Pound
Vise Swivels (Deg.)45°
Weight (Lbs.)726.0000
Weight (Lbs.) (Unit)Pound
Overall Assembled (Bow Raised) (L x W x H)65 x 25 x 67

Part #: 424469

Price: $6,599.00
