HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V

Mitering Horizontal Bandsaws

<< Back

HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V
HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V
HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V
HVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115VHVBS-10-DMWC DUAL MITR PORTABLE 1HP 115V

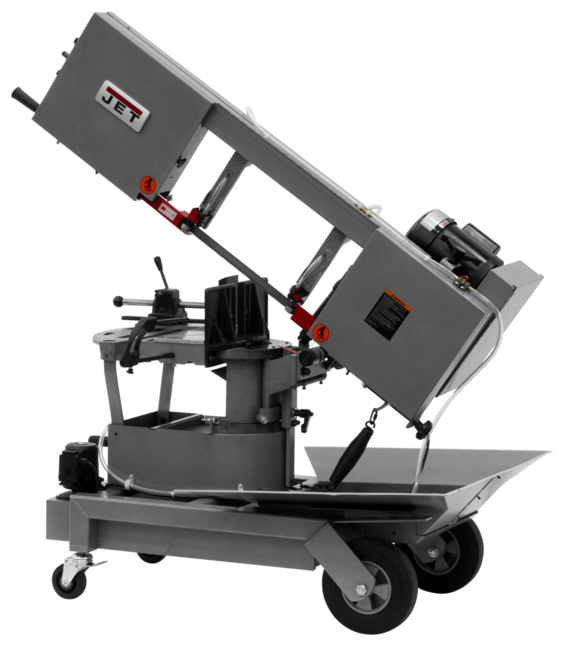

The JET Dual-Mitering Band Saw offers versatility and ease. The unique head design miters both left and right, allowing for quick angle cuts. Add to the convenience with easy conversion from a horizontal to vertical position, and wheels for moving around the shop floor.

HVBS-10-DMWC 10 Horizontal/Vertical Dual Mitering Portable Band Saw with Coolant System, 1HP, 115V, 1 Ph

Features & Benefits

  • Adjustable vise
  • Automatic shut off switch stops the sawing process
  • Blade is fully guarded for Operator safety
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Head is pressure controlled by a hydraulic cylinder
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Large 16" x 10" Vertical cutting table
  • Power switch with safety key prevents accidental start up
  • Protractor for fast and accurate angle cutting
  • Removable chip tray
SAP EAN Number Code (UPC)731325513516
Model NumberHVBS-10-DMWC
SAP Base Unit of MeasureEA
SAP Commodity Code8462.29.0020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length72
SAP Unit of DimensionIN
SAP Height46
SAP Unit of DimensionIN
SAP Width34.5
SAP Unit of DimensionIN
SAP Gross Weight558
SAP Weight UnitLBS
SAP Net weight528
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
End User SellableNo
Head Movement (Deg.)+/- 45
Item Display Order17.0000
Maximum Vise Opening (In.)10
Motor (HP)1HP, 115V, Single Phase
Overall Dimensions (L x W x H) (In.)72 x 34.5 x 46
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)8 x 5-1/2
Rectangle at 90 Degrees (In.)8 x 9
Round at 45 Degrees (In.)6-1/2
Round at 90 Degrees (In.)10
Table Height (In.)30 13/32
Vertical Cutting Capacity13 x 10
Weight (Lbs.)558.0000
Weight (Lbs.) (Unit)Pound

Part #: 424465

Price: $5,299.00
