HVBS-712, 7 X 12 BANDSAW

Manual & Semi-Automatic Horizontal Bandsaws

The JET HVBS-712 Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. JET increased the width and height of the stand and added new features that exceed expectations. The HVBS-712 is another innovative JET product packed with features youve come to expect.

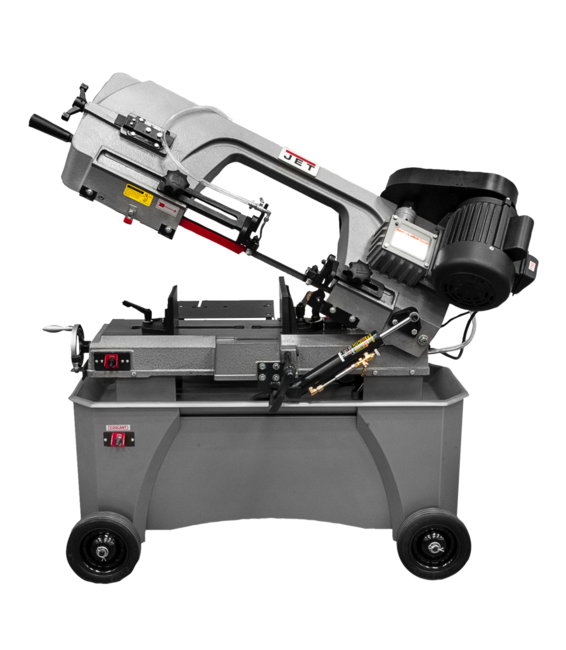

HVBS-712, 7" x 12" Horizontal / Vertical Bandsaw

Features & Benefits

9" x 12" worktable in the vertical position
Adjustable Material Stop
Adjustable material stop for repeatability
Blade drive is a belt to sealed, hardened, and ground gear drive system
Blade wheels are made from flanged cast iron
Blade wheels are made from flanged cast iron for increased durability
Cast mounted adjustable hydraulic downfeed
CSA/CUS Certified
Four 8" Rubber Wheels for Ease of Movement
Improved Height and width of stand with built-in storage cabinet and chip tray

SAP EAN Number Code (UPC)	731325452518
Model Number	HVBS-712
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	48
SAP Unit of Dimension	IN
SAP Height	44
SAP Unit of Dimension	IN
SAP Width	17
SAP Unit of Dimension	IN
SAP Gross Weight	418
SAP Weight Unit	LBS
SAP Net weight	374
SAP Weight Unit	LBS
SAP Transportation Group	LTL
Blade Speeds (SFPM)	86, 132, 178, 260
Blade Wheel Diameter (In.)	11-3/4
Coolant Capacity (Gal.)	1
Drive	Step Pulley
End User Sellable	No
Item Display Order	17.0000
Motor (HP)	3/4 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)	48 x 17 x 40
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	6-1/2 x 4-1/2
Rectangle at 90 Degrees (In.)	4 x 11 / 7 x 10-3/8
Round at 45 Degrees (In.)	4-1/2
Round at 90 Degrees (In.)	7
Square at 45 Degrees (In.)	4-1/2 x 4-1/2
Square at 90 Degrees (In.)	7 x 7
Vise Swivels (Deg.)	45
Weight (Lbs.)	418.0000
Weight (Lbs.) (Unit)	Pound

Part #: 414559

Price: $1,949.00

Quantity:
