HVBS-712D, 7 X 12 DELUXE BANDSAW

Manual & Semi-Automatic Horizontal Bandsaws

<< Back

HVBS-712D, 7 X 12 DELUXE BANDSAW
HVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAW
HVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAW
HVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAW
HVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAWHVBS-712D, 7 X 12 DELUXE BANDSAW

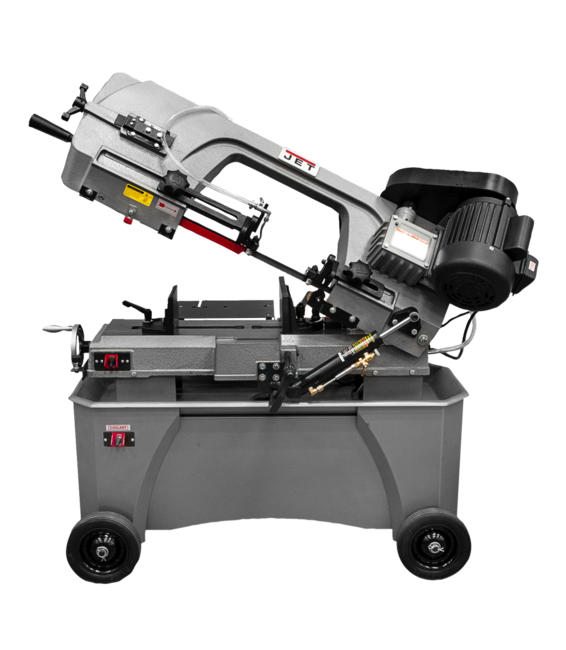

The JET HVBS-712D Deluxe Horizontal/Vertical Metalworking Bandsaw has everything any operator needs to tackle even the toughest job. Increased the width and height of the stand and added new features that exceed expectations. The HVBS-712D is another innovative JET product packed with features youve come to expect

HVBS-712D, 7" x 12" Deluxe Horizontal / Vertical Bandsaw

Features & Benefits

  • Blade drive is a belt to sealed, hardened, and ground gear drive system
  • Blade wheels are made from flanged cast iron for increased durability
  • Cast mounted adjustable hydraulic downfeed
  • CSA/CUS Certified
  • Four 8" Rubber Wheels for Ease of Movement
  • Improved Height and width of stand with built-in storage cabinet and chip tray
  • Large 9" x 12" infeed table assembly extends the support area and can be used in either horizontal or vertical positions
  • Multi-position blade guides enhance use in vertical position by increasing the throat capacity from 4" to 8" and creates a safer working position
  • Toolless quick lock vise with preset mitering positions at 15, 30, 45
SAP EAN Number Code (UPC)731325452525
Model NumberHVBS-712D
SAP Base Unit of MeasureEA
SAP Commodity Code8465.91.0064
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length48
SAP Unit of DimensionIN
SAP Height44
SAP Unit of DimensionIN
SAP Width17
SAP Unit of DimensionIN
SAP Gross Weight418
SAP Weight UnitLBS
SAP Net weight374
SAP Weight UnitLBS
SAP Transportation GroupLTL
Blade Speeds (SFPM)86, 132, 178, 260
Blade Wheel Diameter (In.)11-3/4
Coolant Capacity (Gal.)1
DriveStep Pulley
End User SellableNo
Item Display Order18.0000
Motor (HP)3/4 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)48 x 17 x 44
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)6 x 4
Rectangle at 90 Degrees (In.)4 x 11 / 7 x 10-1/4
Round at 45 Degrees (In.)5
Round at 90 Degrees (In.)7
Square at 90 Degrees (In.)7 x 7
Vise Swivels (Deg.)45
Weight (Lbs.)418.0000
Weight (Lbs.) (Unit)Pound

Part #: 414560

Price: $2,059.00
