J-7020 10 X 16 HORIZONTAL BANDSAW

Manual & Semi-Automatic Horizontal Bandsaws

<< Back

J-7020 10 X 16 HORIZONTAL BANDSAW
J-7020 10 X 16 HORIZONTAL BANDSAWJ-7020 10 X 16 HORIZONTAL BANDSAWJ-7020 10 X 16 HORIZONTAL BANDSAW
J-7020 10 X 16 HORIZONTAL BANDSAWJ-7020 10 X 16 HORIZONTAL BANDSAWJ-7020 10 X 16 HORIZONTAL BANDSAW

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and

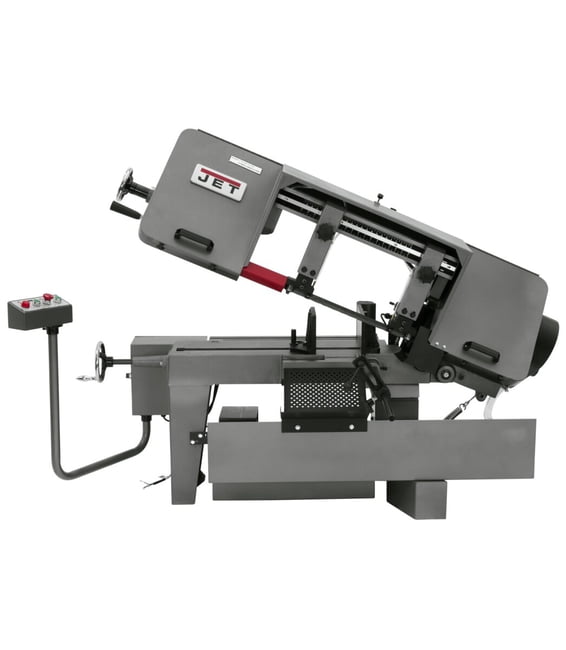

J-7020, 10" x 16" Horizontal Bandsaw

Features & Benefits

  • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Adjustable Material Stop
  • Cast iron blade wheels
  • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
  • Patented 3-Jaw vise with rapid action moveable jaw for faster set up
  • Swing away control panel houses major saw controls
  • Variable speed drive system
SAP EAN Number Code (UPC)662756090973
Model NumberJ-7020
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length75.5
SAP Unit of DimensionIN
SAP Height41
SAP Unit of DimensionIN
SAP Width33
SAP Unit of DimensionIN
SAP Gross Weight1000
SAP Weight UnitLBS
SAP Net weight973
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products418448,418449,5674011,5674021,5674022
Blade Speeds (SFPM)100 - 350
Blade Wheel Diameter (In.)14
DriveVariable Speed
End User SellableNo
Item Display Order14.0000
Motor (HP)1-1/2 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.)75-1/2 x 33 x 41
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)6-1/2 x 11
Rectangle at 90 Degrees (In.)10 x 10 and 7 x 16
Round at 45 Degrees (In.)10
Round at 90 Degrees (In.)10
Vise Swivels (Deg.)45°
Weight (Lbs.)927.0000
Weight (Lbs.) (Unit)Pound

Part #: 414472

Price: $6,989.00
