J-7040-4 HORIZONTAL BANDSAW 460V 3PH

Manual & Semi-Automatic Horizontal Bandsaws

Exclusive 6-point blade guide assemblies and swivel control panel on this rugged JET saw enhance overall function and performance

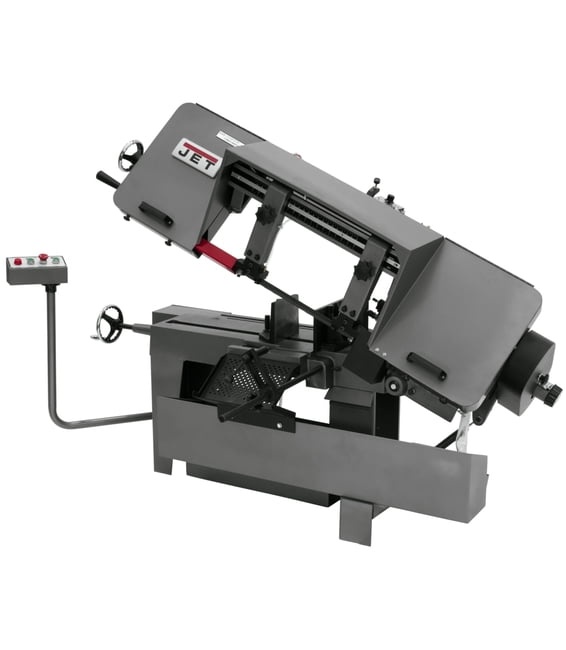

J-7040-4, 10" x 16" Horizontal Bandsaw

Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
Adjustable Material Stop
Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
Patented 3-Jaw vise with rapid action moveable jaw for faster set up
Swing away control panel houses major saw controls
Variable speed drive system

SAP EAN Number Code (UPC)	662756141668
Model Number	J-7040-4
SAP Base Unit of Measure	EA
SAP Commodity Code	8461.50.8020
SAP Country of Origin	Taiwan
Warranty	2 Year
SAP Delivery Plant	JNA
SAP Length	79
SAP Unit of Dimension	IN
SAP Height	41
SAP Unit of Dimension	IN
SAP Width	31
SAP Unit of Dimension	IN
SAP Gross Weight	1025
SAP Weight Unit	LBS
SAP Net weight	973
SAP Weight Unit	LBS
SAP Transportation Group	LTL-Dock Del Only
Accessories Products	418452,418453,5674011,5674021,5674022
Blade Speeds (SFPM)	100 - 350
Blade Wheel Diameter (In.)	14
Drive	Variable Speed
End User Sellable	No
Item Display Order	9.0000
Motor (HP)	2 HP, 460V, 3Ph
Overall Dimensions (L x W x H) (In.)	75-1/2 x 33 x 41
Prop 65	Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)	6-1/2 x 11
Rectangle at 90 Degrees (In.)	10 x 10 and 7 x 16
Round at 45 Degrees (In.)	10
Round at 90 Degrees (In.)	10
Vise Swivels (Deg.)	45°
Weight (Lbs.)	927.0000
Weight (Lbs.) (Unit)	Pound

Part #: 414499

Price: $7,089.00

Quantity:
