J-7060-4 SEMI AUTOMATIC BANDSAW 440V

This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.

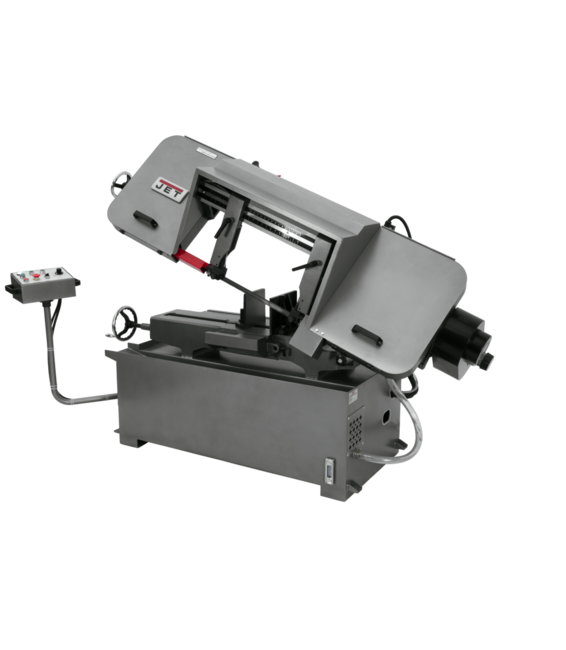

J-7060-4, 12" x 20" Semi-Automatic Horizontal Bandsaw

Features & Benefits

  • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Adjustable Material Stop
  • Cast iron blade wheels
  • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
  • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
  • Patented 3-Jaw vise with rapid action moveable jaw for faster set up
  • Swing away control panel houses major saw controls
  • Variable speed drive system
SAP EAN Number Code (UPC)662755117244
Model NumberJ-7060-4
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8090
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length34
SAP Unit of DimensionIN
SAP Height61
SAP Unit of DimensionIN
SAP Width86
SAP Unit of DimensionIN
SAP Gross Weight1279
SAP Weight UnitLBS
SAP Net weight1144
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products418444,418445,5512107,5512108,5674023
Blade Wheel Diameter (In.)17
DriveVariable Speed
End User SellableNo
Item Display Order5.0000
Motor (HP)3 HP, 460V, 3Ph
Overall Dimensions (L x W x H) (In.)87 x 37-1/2 x 53
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)12 x 12
Rectangle at 90 Degrees (In.)12 x 20
Round at 45 Degrees (In.)12
Round at 90 Degrees (In.)12
Vise Swivels (Deg.)45°
Weight (Lbs.)1456.0000
Weight (Lbs.) (Unit)Pound

Part #: 414476-4

Price: $14,289.00
Quantity:
