MBS-1014W-1 SWIVL HD BANDSAW

Mitering Horizontal Bandsaws

<< Back

MBS-1014W-1 SWIVL HD BANDSAW
MBS-1014W-1 SWIVL HD BANDSAWMBS-1014W-1 SWIVL HD BANDSAWMBS-1014W-1 SWIVL HD BANDSAW
MBS-1014W-1 SWIVL HD BANDSAWMBS-1014W-1 SWIVL HD BANDSAWMBS-1014W-1 SWIVL HD BANDSAW
MBS-1014W-1 SWIVL HD BANDSAWMBS-1014W-1 SWIVL HD BANDSAW

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

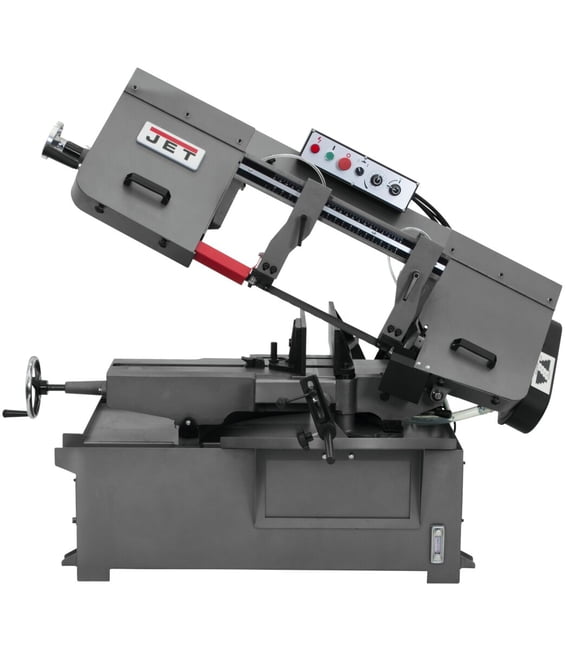

MBS-1014W-1, 10" x 14" Horizontal Mitering Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Carbide blade guides with roller bearings
  • Coolant is distributed through the blade guides
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Large , easy-to-read scale for accurate positioning of the saw head
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Mitering head swivels to cut any angle 0 - 45 while the work piece remains secured
  • Quick positioning vise reduces set-up time
SAP EAN Number Code (UPC)662755788789
Model NumberMBS-1014W-1
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Unit of DimensionIN
SAP Gross Weight1067
SAP Weight UnitLBS
SAP Net weight1034
SAP Weight UnitLBS
SAP Transportation GroupLTL
Accessories Products414311,414312,414313,418458,418459
Bed Height (In.)25
Blade Wheel Diameter (In.)14
DriveBelt Drive
End User SellableNo
Item Display Order4.0000
Motor (HP)2 HP, 230V, 1Ph
Overall Dimensions (L x W x H) (In.)26 x 69 x 44
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)9 x 8-1/2
Rectangle at 90 Degrees (In.)10 x 14
Round at 45 Degrees (In.)9
Round at 90 Degrees (In.)10
Vise Swivels (Deg.)45°
Weight (Lbs.)946.0000
Weight (Lbs.) (Unit)Pound

Part #: 414479

Price: $8,439.00
Quantity:
