MBS-1018-3 10 DUAL MITER 2HP, 230/460V

Mitering Horizontal Bandsaws

<< Back

MBS-1018-3  10 DUAL MITER 2HP, 230/460V
MBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460V
MBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460V
MBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460V
MBS-1018-3  10 DUAL MITER 2HP, 230/460VMBS-1018-3  10 DUAL MITER 2HP, 230/460V

JET Dual Mitering Horizontal Bandsaws unique design head dual miters both left and right for quick angle cuts. The heavy-duty construction on the bandsaw features a fully guarded blade for operator safety and blade tension gauge to ensure correct cutting position. The automatic blade breakage sensor detects accidental breakage and interrupts the power. With the built-in, self-propelled blade brush, the stress of chip build up in blade guides is no longer.

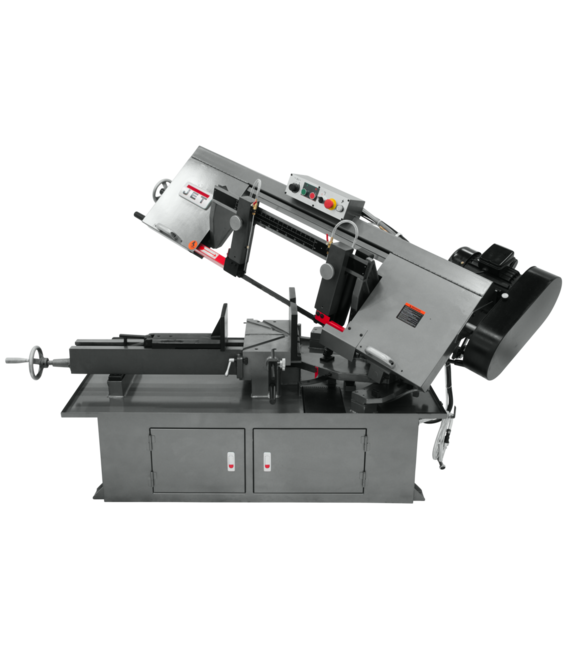

MBS-1018-3 , 10" x 18" Horizontal Dual Mitering Bandsaw

Features & Benefits

  • Adjustable Material Stop
  • Automatic shut off switch stops the sawing process
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Integrated pressurized wash hose for easy machine clean up
  • Magnetic starter for low voltage and lost phase protection
  • Quick action vise on 10" saws
SAP EAN Number Code (UPC)731325513530
Model NumberMBS-1018-3 10
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length84.6
SAP Unit of DimensionIN
SAP Height44.48
SAP Unit of DimensionIN
SAP Width41.73
SAP Unit of DimensionIN
SAP Gross Weight1144
SAP Weight UnitLBS
SAP Net weight1034
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Blade Wheel Diameter (In.)14-1/4
End User SellableNo
Gross Weight (Lbs)1606.0000
Gross Weight (Lbs) (Unit)Pound
Head Movement (Deg.)45R ,60L
Item Display Order15.0000
Motor (HP)2 HP, 230/460V, 3 Phase
Overall Dimensions (L x W x H) (In.)79 x 36 x 46
Prop 65Cancer and Reproductive Harm
Rectangle at 45 Degrees (In.)10 x 12
Rectangle at 60 Degrees (In.)6 x 5
Rectangle at 90 Degrees (In.)10 x 17
Round at 45 Degrees (In.)10
Round at 60 Degrees (In.)6
Round at 90 Degrees (In.)10
Weight (Lbs.)1144.0000
Weight (Lbs.) (Unit)Pound

Part #: 413410

Price: $8,999.00
