MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V

Mitering Horizontal Bandsaws

<< Back

MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V
MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V
MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V
MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V
MBS-1323EVS-H 13 EVS DUAL MITER 3HP,230VMBS-1323EVS-H 13 EVS DUAL MITER 3HP,230V

JET Dual Mitering Horizontal bandsaws' unique design head dual miters both left and right for quick angle cuts. The Frequency Inverter, unique to this saw, allows this EVS saw a full range of blade speeds. The saw comes with an automatic blade breakage sensor that detects accidental breakage and interrupts the power as well as an automatic shut off switch to stop the sawing process. To ensure operator safety, the blade is fully guarded.

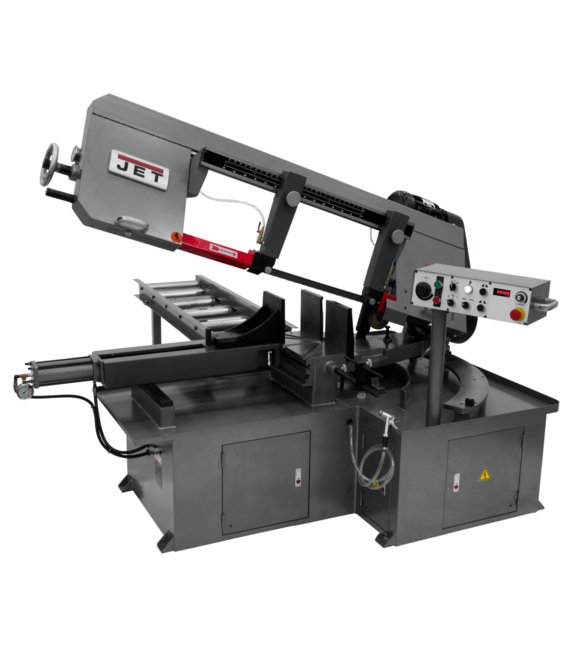

MBS-1323EVS-H, Semi-Automatic Dual Mitering Bandsaw 3HP 230V, 3-Ph

Features & Benefits

  • Adjustable Material Stop
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Heavy Duty construction
  • Hydraulic downfeed control is easily adjusted enabling feed rates to evolve with variable types of materials
  • Hydraulic Vise for rapid clamping of material on 13" saw
  • Integrated pressurized wash hose for easy machine clean up
  • Magnetic starter for low voltage and lost phase protection
  • Semi-automatic bow raises after cut to predetermined height
SAP EAN Number Code (UPC)731325513561
Model NumberMBS-1323EVS-H
SAP Base Unit of MeasureEA
SAP Commodity Code8461.50.8020
SAP Country of OriginTaiwan
Warranty2 Year
SAP Delivery PlantJNA
SAP Length89.76
SAP Unit of DimensionIN
SAP Height63
SAP Unit of DimensionIN
SAP Width57.8
SAP Unit of DimensionIN
SAP Gross Weight2090
SAP Weight UnitLBS
SAP Net weight1826
SAP Weight UnitLBS
SAP Transportation GroupLTL-Dock Del Only
Accessories Products413413,414403
Bed Height (In.)27.75
Blade Wheel Diameter (In.)16
DriveEVS
End User SellableNo
Item Display Order13.0000
Motor (HP)3 HP, 230V, 3-Phase
Overall Dimensions (L x W x H) (In.)88 x 55 x 51
Prop 65Cancer and Reproductive Harm
Rectangle at 90 Degrees (In.)12 x 23-1/2
Round at 45 Degrees (In.)13
Round at 60 Degrees (In.)11
Round at 90 Degrees (In.)13
Weight (Lbs.)2090.0000
Weight (Lbs.) (Unit)Pound

Part #: 413412

Price: $19,899.00
