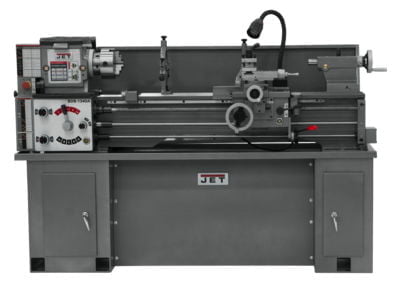

BDB-1340A With ACU-RITE VUE DRO With Collet Closer

Lathes

One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
Enclosed gearbox design provides smooth, quiet operation
Fast, easy speed changes
Low voltage motor controls
Helical cut headstock gears reudce noise
Change gears allow metric threading
Spindle is supported by precision tapered roller bearings
V-way bed is induction hardened and ground
Gap bed section provided for large diameter work
Independent leadscrew and feed rod

UPC	731325204339
SAP Material Group	MW601
SAP Material Type	ZFIN
SAP Warranty	2 Year
Model Number	BDB-1340A
SAP Owner	JMW
SAP Division	1
SAP Country of Origin	CN
SAP Product Category	MW
SAP Rounding Profile	NA
SAP Height	28.500
SAP Length	79.000
SAP Volume	39.089
SAP Width	30.000
Number of Longitudinal and Cross Feed Rates	38
Number of Metric Threads	23
Max Tool Size (In.)	5/8 x 5/8
Drive	SV_1375591258788
Overall Dimensions (L x W x H) (In.)	71 x 32 x 45
Swing Through Gap (In.)	18-3/4
Weight (Lbs.)	1,175
Width of Bed (In.)	7-3/8
Motor (HP)	2 HP, 230V, 1Ph
Swing Over Bed (In.)	13
Cross Slide Travel (In.)	6-5/16
Taper in Tailstock Spindle	MT-3
Compound Slide Travel (In.)	2-11/16
Range of Metric Threads	0.45-10
Carriage Travel (In.)	35
Steady Rest Capacity (In.)	2-5/8
Number of Inch Threads	38
Range of Spindle Speeds (RPM)	60 - 1,240
Spindle Mount	D1-4
Follow Rest Capacity (In.)	2-3/4
Spindle Bore (In.)	1-3/8
Range of Inch Threads (TPI)	3-1/2 - 80
Digital Readout	ACU-RITE VUE
Size	13 x 40
Spindle Taper with Sleeve	MT-5 (MT-3)
Swing Over Cross Slide (In.)	7-25/32
Number of Spindle Speeds	12
Tailstock Spindle Travel (In.)	3-3/4
Style (Type)	SV_1375591258793
Accessory 2	Collet Closer
Length of Gap (In.)	8
Range of Cross Feeds (IPR)	0.0006-0.013
Distance Between Centers (In.)	40
Range of Longitudinal Feeds (IPR)	0.0018-0.0374
Prewired (V.)	230

Part #: 321108

Price: $13,579.00

Quantity:
